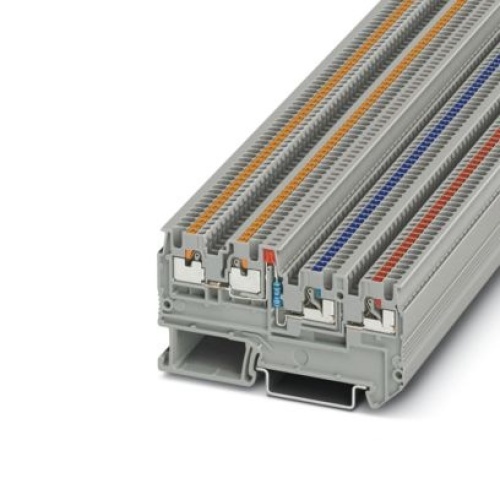

Phoenix Contact 3244423 Initiator/actuator terminal block PTIO 1,5/S/3-LED 24 RD
Normally In Stock
Code: 42451
PTIO 1,5/S/3-LED 24 RD Phoenix Contact 3244423 Sensor/actuator Terminal Block - PTIO 1,5/S/3-LED 24 RD Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Gray. 250 V, 13.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$9.86
Sale Price
$8.22
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3244423 The initiator/actuator terminal block features a red light indicator and is designed for use with a nominal voltage of 250V, a maximum current draw of 13.5A, accommodating four connections via push-in connection method. The rated cross-sectional area ranges from 0.14mm² to 1.5mm², while the terminal block itself is mounted using an NS35/7.5 or NS35/15 mounting type, with a standard color specification of gray.
Specifications
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-in Connection
Component
Terminal block
Manufacturer
Phoenix Contact
Terminal Block Amperage
13.5 Amp
Sub Component
Sensor-Acuator Terminal Block
