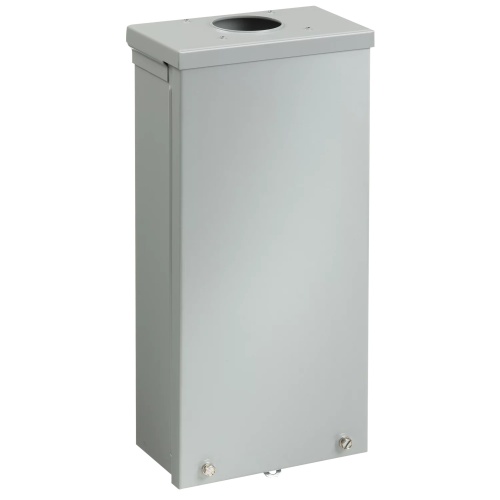

Hoffman TB3R201 Current Transformer Terminal Box, Type 3R
Normally In Stock
Code: 42917
Hoffman TB3R201 Current Transformer Terminal Box, Type 3R Outdoor-Indoor 23" x 12" x 4.5" (HxWxD) Steel Enclosure. Wall Mount Painted Steel with Screw Lift-Off latch None. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$413.71
Sale Price
$344.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hoffman TB3R201 Current Transformer Terminal Box, Type 3R Terminal Box, Type 3R is a wire-splice box for outdoor industrial or commercial applications that have a feeder tap to branch circuits. Boxes are available in three- or four-wire configurations in sizes up to 400 A. Provisions for padlocking or seal, Distribution lugs installed, Removable cover, Drip-shield top and seam-free sides, front and back, Grounding provisions, Hub opening at top with cover, and Knockouts on bottom of enclosure.
Specifications
Enclosure Composition
Galvanized Steel
Enclosure knockouts
Includes Knockouts
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Depth
4.5"
Enclosure Width
12"
Enclosure Height
23"
Manufacturer
Hoffman
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Commercial Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure Type
CT Terminal Box
Features
Knockouts on bottom of enclosure
Provisions for padlocking or seal
Distribution lugs installed (see table for sizes)
Removable cover
Hub opening at top with cover
Grounding provisions
Drip-shield top and seam-free sides, front and back
Terminal Boxes are finished with paint over plated surfaces
