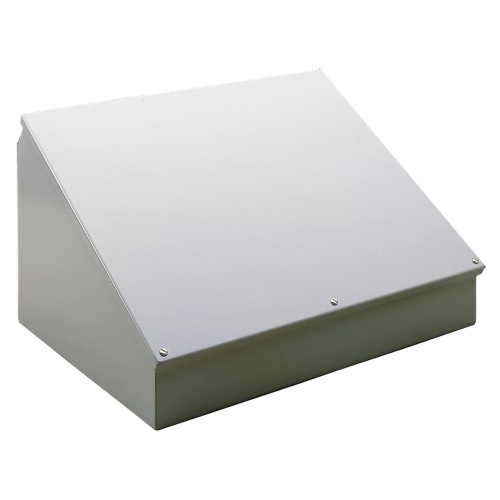

Hoffman C16C20SS Stainless Steel Consolet Enclosure
Normally In Stock
Code: 4414
Hoffman C16C20SS Consolet Enclosure Stainless Steel 16.00 x 20.00 x 11.09 inch (HxWxD) Type 12 304 Stainless Steel Consolet. Cover attached with continuous hinge and captivated cover screws thread into sealed wells. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$2321.84
Sale Price
$1934.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hoffman C16C20SS Stainless Steel Consolet Enclosure Hoffman C16C20SS Consolet Enclosure Stainless Steel 16.00 x 20.00 x 11.09 inch (HxWxD) This Hoffman Type 12 304 Stainless Steel Consolet may be small, but it still sports all of the strength and durability that we've come to expect from Hoffman. The 30- or 60-degree sloped cover is attached with a continuous hinge, and captivated cover screws thread into sealed wells. With continuously welded seams and an oil-resistant gasket, this enclosure is sure to protect all enclosed components.
Specifications
Enclosure Hinge Type
Continuous Hinge
Enclosure Latch Type
Screw Lift-Off
Enclosure Mount Type
Pedestal Mount
Enclosure Depth
11"
Enclosure Composition
304 Stainless Steel
Enclosure Width
20"
Manufacturer
Hoffman
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Height
16"
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Features
Bonding provision on cover
No holes or knockouts
Captivated cover screws thread into sealed wells
Oil-resistant gasket and adhesive
Seams continuously welded and ground smooth
Can be positioned on either of two sides to provide a 30- or 60-degree surface access
Continuous hinge
Downloads
Hoffman C16C20SS 2D DXF CAD.zipHoffman C16C20SS 3D STEP CAD.zipHoffman C16C20SS CAD Drawing.zipHoffman C16C20SS Declaration of Compliance.pdfHoffman C16C20SS Dimension Drawing.gifHoffman C16C20SS EU Certification.pdfHoffman C16C20SS Instruction Manual.pdfHoffman C16C20SS Spec Sheet.pdfHoffman C16C20SS UL Certification.pdfHoffman C16C20SS User Manual.pdf
