Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

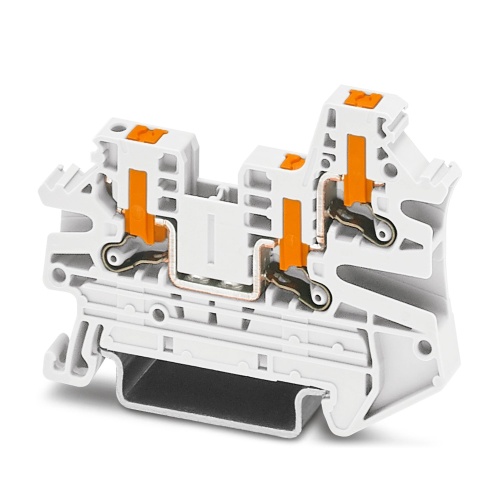

Phoenix Contact 1451437 Feed-through terminal block PTV 2,5-TWIN WH
Normally In Stock
Code: 492252
Phoenix Contact PTV 2,5-TWIN WH - Feed-through terminal block - 800 Volt, 24 Amp - 1451437
Condition: New
Usually Ships Same day or Next Day$2.12
Sale Price
$1.77
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1451437 The feed-through terminal block has a nominal voltage of 800V and can handle a nominal current of up to 24A, accommodating three connections via push-in connection method. The rated cross-sectional area is 2.5mm² with a minimum of 0.14mm² and maximum of 4mm², and it can be mounted using the NS 35/7,5 or NS 35/15 types, available in white color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
3
Terminal Block Component Color
White
Terminal Block Amperage
24 Amp
Manufacturer
Phoenix Contact
Sub Component
Multi-Conductor Terminal Block
Features
Clear wiring, thanks to lateral conductor entry
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
The compact design enables wiring in a confined space
Downloads
Code: 492252
Phoenix Contact 1451437 Feed-through terminal block PTV 2,5-TWIN WH
