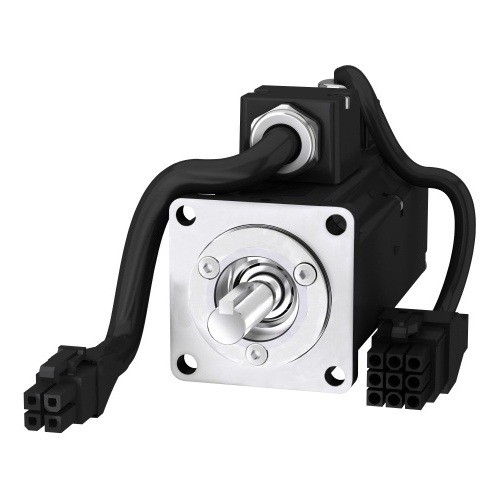

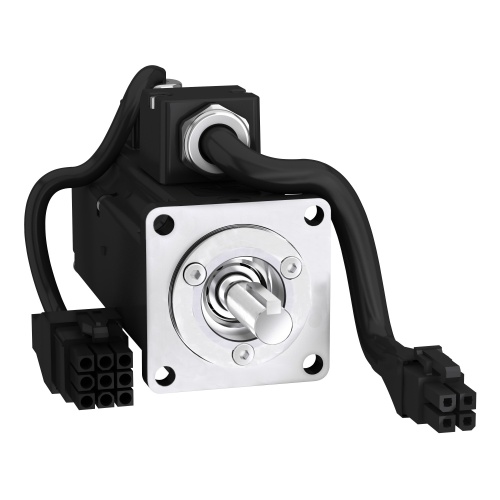

Schneider Electric BCH2MB0130CA5C Servo Motor - 110-220 Volt, 0.89 Amp, 0.1 HP, 5000 RPM, 1/3Ph
Normally In Stock
Code: 495173
Schneider Electric BCH2MB0130CA5C servo motor BCH, Lexium 28, 40mm, 100W, without oil seal, smooth, leads connection
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2064.70
Sale Price
$1720.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BCH2MB0130CA5C is a compact and efficient motor designed for various applications. With a rated supply voltage of 220V or 110V, and available in single or three-phase options, it offers flexibility. It has a maximum mechanical speed of 5000 rpm and a maximum radial force of 85N at 3000 rpm. The motor features natural convection cooling and has a smooth shaft. With a continuous stall torque of 2.83 lbf.in and a peak stall torque of 8.50 lbf.in, it provides reliable performance. It is compatible with LXM28 servo drives and has an IP degree of protection of IP54 and IP50.
Specifications
Motor Voltage Phases
3 Phase
Manufacturer
Schneider Electric
Motor Voltage Phases
1 Phase
Motor Voltage
110 Volt
Motor Voltage
220 Volt
Motor Horsepower
0.1 HP
Motor RPM's
5000 RPM
Motor Amperage (Full Load)
0.89 Amp
Features
The Lexium 28 range offers predetermined combinations to suit the requirements of motion control applications and optimize installation performance.
The combinations of servo motors with servo drives are based on the power class: both servo motors and servo drives have the same power class.
The bundle of a servo drive with its related servo motor is designed to cover a nominal power from 0.05 kW up to 4.5 kW (0.067 up to 6.03 hp) with 200-240 V mains supply voltage.
The Lexium 28 servo drives are delivered without an EMC filter, the EMC immunity is reached with an additional EMC filter.
The Lexium 28 servo drives have a degree of protection IP20.
