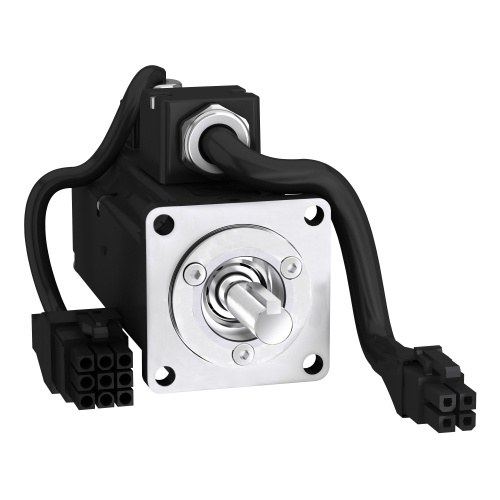

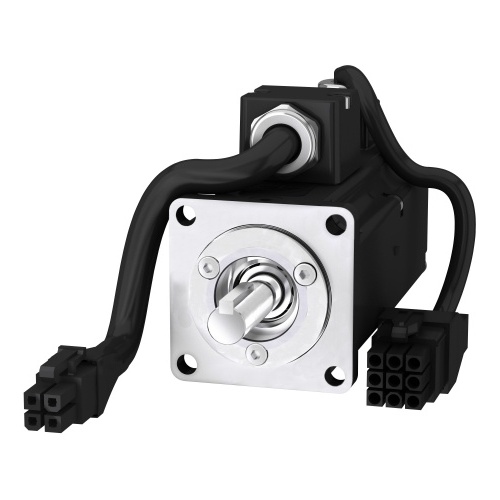

Schneider Electric BCH2MBA532CF5C , Type: Three-phase and single-phase motor , Amps: 0.59 Amp , Returnability: Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE* , Electrical Connection: Free lead , Cooling: Natural convection , Maximum mechanical speed: 5000 rpm , Maximum radial force: 85 N at 3000 rpm , Length: 4.41 in (112 mm) , Mounting hole circle diameter: 1.81 in (46 mm) , Shaft diameter: 0.31 in (8 mm) , Rotor inertia: 0.055 kg.cm² , Continuous stall torque: 1.42 lbf.in (0.16 N.m) , Motor flange size: 1.57 in (40 mm) , Shaft end: Smooth shaft , Holding brake: With , Centring collar depth: 0.12 in (3 mm) , Number of mounting holes: 4 , Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*minal speed: 3000 rpm , Peak stall torque: 4.25 lbf.in (0.48 N.m) , Shaft length: 0.98 in (25 mm) , Maximum axial force: 40 N , Mounting holes diameter: 0.18 in (4.5 mm) , Centring collar diameter: 1.18 in (30 mm) , Product compatibility: LXM28... servo drive 0.05 kW , Holding torque: 2.83 lbf.in (0.32 N.m) built-in , Range Compatibility: Lexium 28 , Degree of Protection: IP50 IM V3,IP65 IM B5, IM V1 , Feedback type: 20 bits single turn absolute encoder , Stator electrical time constant: 0.8 ms , Rated supply voltage: 220 V, 110 V , Ambient Air Temperature for Operation: 32…104 °F (0…40 °C) , Distance shaft shoulder-flange: 0.12 in (3 mm)
