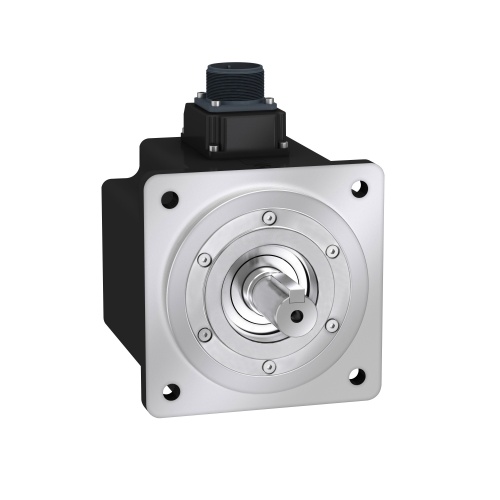

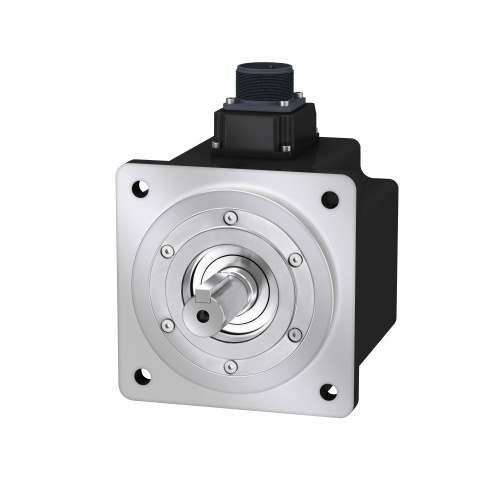

Schneider Electric BCH2MM0811CA6C Servo Motor - 220 Volt, 6.29 Amp, 1.1 HP, 3000 RPM, 1/3Ph
Normally In Stock
Code: 495187
Schneider Electric BCH2MM0811CA6C servo motor BCH, Lexium 28, 130mm, 850W, without oil seal, with key, straight connection
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2632.72
Sale Price
$2193.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BCH2MM0811CA6C Motor, Amps: 6.29A,Electrical Connection: MIL Connector,Phase: Single phase, Three phase,Cooling: Natural convection,Max Mechanical Speed: 3000 rpm,Max Radial Force: 670N at 1500 rpm,Length: 7.36in (187mm),Mounting: 4 holes, 5.71in (145mm) diameter circle,Shaft: 0.87in (22mm),Rotor Inertia: 13.5kg.cm²,Continuous Stall Torque: 47.71lbf.in (5.39N.m),Peak Stall Torque: 122.14lbf.in (13.8N.m),Motor Flange Size: 5.12in (130mm),Holding Brake: Without,Centring Collar Depth: 0.31in (8mm),Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*minal Speed: 1500 rpm,Axial Force: 200N,Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*minal Power: 850W,Stator Resistance: 0.34 Ohm,Stator Inductance: 4.5mH,Back EMF Constant: 58V/krpm,Torque Constant: 0.96N.m/A,Continuous Power: 850W,Compatibility: LXM28 servo drive 0.85kW, 220V,Key Width: 0.31in (8mm),IP Degree of Protection: IP54 (IM B5, IM V1),Number of Motor Stacks: 4,Feedback Type: 20 bits single turn absolute encoder,Stator Electrical Time Constant: 13.24ms,Rated Supply Voltage: 220V,Operating Temperature Range: -4 to 104°F (-20 to 40°C),Shaft-Flange Distance: 0.31in (8mm), Schneider Electric BCH2MM0811CA6C Motor is a high-performance single and three phase motor that operates at max speeds of 3000rpm. With a max radial force of 670N, it offers reliable power and efficiency. This motor is compatible with LXM28 servo drives and features a compact design with IP54 protection.
Specifications
Motor Voltage Phases
3 Phase
Manufacturer
Schneider Electric
Motor Voltage Phases
1 Phase
Motor RPM's
3000 RPM
Motor Voltage
220 Volt
Motor Horsepower
1.1 HP
Motor Amperage (Full Load)
6.29 Amp
Features
The Lexium 28 range offers predetermined combinations to suit the requirements of motion control applications and optimize installation performance.
The combinations of servo motors with servo drives are based on the power class: both servo motors and servo drives have the same power class.
The bundle of a servo drive with its related servo motor is designed to cover a nominal power from 0.05 kW up to 4.5 kW (0.067 up to 6.03 hp) with 200-240 V mains supply voltage.
The Lexium 28 servo drives are delivered without an EMC filter, the EMC immunity is reached with an additional EMC filter.
The Lexium 28 servo drives have a degree of protection IP20.
