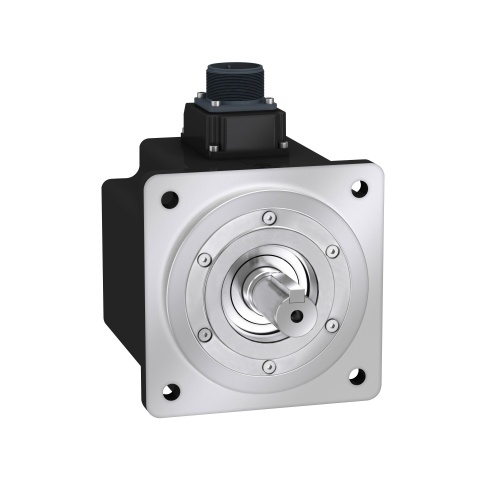

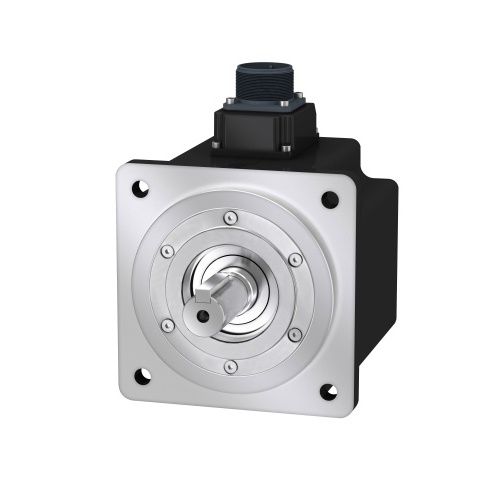

Schneider Electric BCH2MM1022CA6C Servo Motor - 220 Volt, 6.29 Amp, 1.3 HP, 3000 RPM, 1/3Ph
Normally In Stock
Code: 495194
Schneider Electric BCH2MM1022CA6C servo motor BCH, Lexium 28, 130mm, 1000W, with oil seal, smooth, straight connection
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2432.20
Sale Price
$2026.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BCH2MM1022CA6C motor is a single or three-phase motor with a maximum mechanical speed of 3000 rpm. It has a continuous stall torque of 42.22 lbf.in (4.77 N.m) and a peak stall torque of 126.57 lbf.in (14.3 N.m). With a rated supply voltage of 220V, it is compatible with LXM28 servo drives and has an IP50 or IP65 degree of protection. This motor is suitable for various applications requiring high torque and reliable performance.
Specifications
Motor Voltage Phases
3 Phase
Manufacturer
Schneider Electric
Motor Voltage Phases
1 Phase
Motor RPM's
3000 RPM
Motor Voltage
220 Volt
Motor Horsepower
1.3 HP
Motor Amperage (Full Load)
6.29 Amp
Features
The Lexium 28 range offers predetermined combinations to suit the requirements of motion control applications and optimize installation performance.
The combinations of servo motors with servo drives are based on the power class: both servo motors and servo drives have the same power class.
The bundle of a servo drive with its related servo motor is designed to cover a nominal power from 0.05 kW up to 4.5 kW (0.067 up to 6.03 hp) with 200-240 V mains supply voltage.
The Lexium 28 servo drives are delivered without an EMC filter, the EMC immunity is reached with an additional EMC filter.
The Lexium 28 servo drives have a degree of protection IP20.
