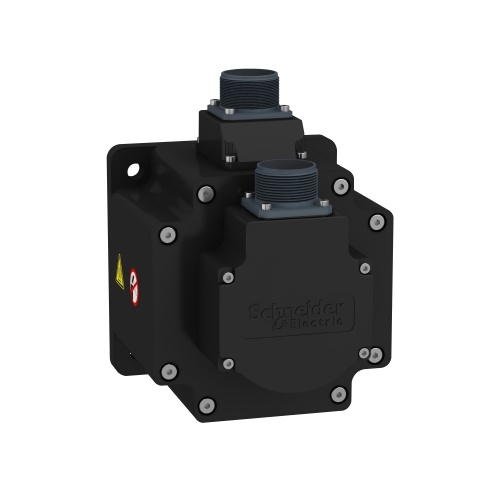

Schneider Electric BCH2MM1023CF6C Servo Motor - 110-220 Volt, 6.29 Amp, 1.3 HP, 3000 RPM, 1/3Ph
Normally In Stock
Code: 495196
Schneider Electric BCH2MM1023CF6C servo motor BCH, Lexium 28, 130mm, 1000W, with oil seal, with key, brake, straight connection
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2369.82
Sale Price
$1974.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BCH2MM1023CF6C motor is a versatile single-phase and three-phase motor with a maximum mechanical speed of 3000 rpm. It offers a continuous stall torque of 42.22 lbf.in (4.77 N.m) and a peak stall torque of 126.57 lbf.in (14.3 N.m). With a holding brake and a built-in holding torque of 84.97 lbf.in (9.6 N.m), this motor ensures stable operation. It is compatible with LXM26D and LXM28... servo drives and has a power output of 1000 W. This motor is also IP50 and IP65 rated, providing protection against dust and water.
Specifications
Motor Voltage Phases
3 Phase
Motor Horsepower
2 HP
Manufacturer
Schneider Electric
Motor Voltage Phases
1 Phase
Motor RPM's
3000 RPM
Motor Voltage
220 Volt
Motor Amperage (Full Load)
6.74 Amp
Features
The Lexium 28 range offers predetermined combinations to suit the requirements of motion control applications and optimize installation performance.
The combinations of servo motors with servo drives are based on the power class: both servo motors and servo drives have the same power class.
The bundle of a servo drive with its related servo motor is designed to cover a nominal power from 0.05 kW up to 4.5 kW (0.067 up to 6.03 hp) with 200-240 V mains supply voltage.
The Lexium 28 servo drives are delivered without an EMC filter, the EMC immunity is reached with an additional EMC filter.
The Lexium 28 servo drives have a degree of protection IP20.
