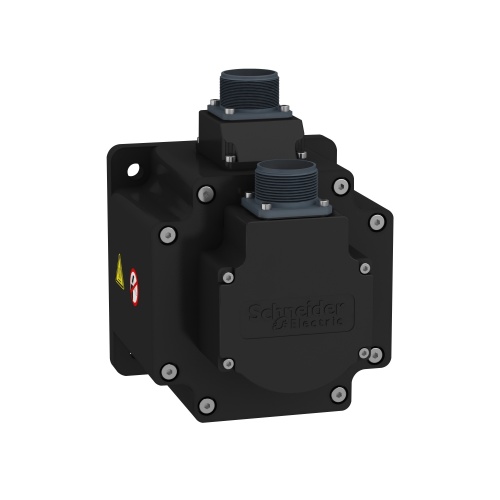

Schneider Electric BCH2MM2022CF6C Servo Motor - 220 Volt, 11.25 Amp, 2.7 HP, 3000 RPM, 3Ph
Normally In Stock
Code: 495204
Schneider Electric BCH2MM2022CF6C servo motor BCH, Lexium 28, 130mm, 2000W, with oil seal, smooth, brake, straight connection
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$6414.40
Sale Price
$5345.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BCH2MM2022CF6C is an 11.25 Amp, three-phase motor with natural convection cooling. It has a maximum mechanical speed of 3000 rpm and a maximum radial force of 670 N at 2000 rpm. The motor's dimensions are 8.50 in length, with a mounting hole circle diameter of 5.71 in and a shaft diameter of 0.87 in. It has a rotor inertia of 14.1 kg.cm² and a continuous stall torque of 84.52 lbf.in. The motor is compatible with the LXM28 servo drive 2 kW and has a built-in holding torque of 84.97 lbf.in. It has an IP50 IM V3,IP65 IM B5, IM V1 degree of protection and a feedback type of 20 bits single turn absolute encoder. The motor operates at a rated supply voltage of 220 V and can withstand an ambient air temperature of 32-104 °F.
Specifications
Motor Voltage Phases
3 Phase
Manufacturer
Schneider Electric
Motor RPM's
3000 RPM
Motor Voltage
220 Volt
Motor Horsepower
2.7 HP
Motor Amperage (Full Load)
11.25 Amp
Features
The Lexium 28 range offers predetermined combinations to suit the requirements of motion control applications and optimize installation performance.
The combinations of servo motors with servo drives are based on the power class: both servo motors and servo drives have the same power class.
The bundle of a servo drive with its related servo motor is designed to cover a nominal power from 0.05 kW up to 4.5 kW (0.067 up to 6.03 hp) with 200-240 V mains supply voltage.
The Lexium 28 servo drives are delivered without an EMC filter, the EMC immunity is reached with an additional EMC filter.
The Lexium 28 servo drives have a degree of protection IP20.
