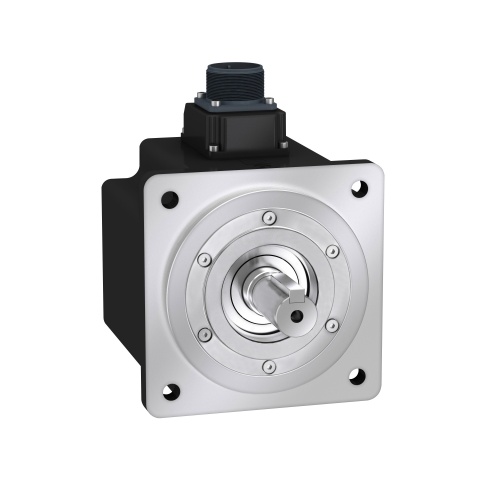

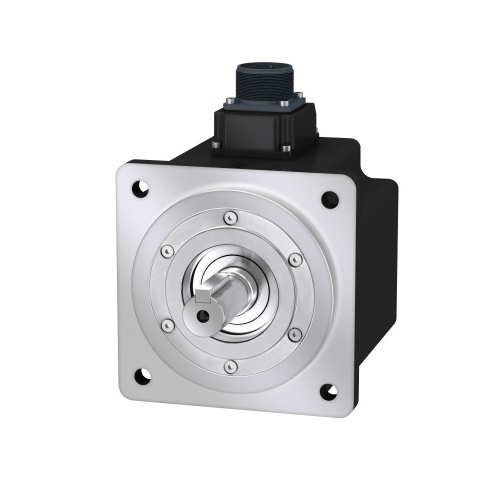

Schneider Electric BCH2MM2023CA6C motor is a three-phase, 11.25 Amp unit with a maximum mechanical speed of 3000 rpm and a maximum radial force of 670N at 2000 rpm. It has a length of 7.36 in (187mm), a shaft diameter of 0.87 in (22mm), and a rotor inertia of 13.5 kg.cm². The motor is compatible with LXM26D and LXM28... servo drives and has a nominal torque of 84.52 lbf.in (9.55 N.m). It has a peak stall torque of 253.57 lbf.in (28.65 N.m) and a maximum axial force of 200N. The motor operates at a nominal speed of 2000 rpm and has a continuous power of 2000W. It is rated for a supply voltage of 220V and has an IP50 degree of protection. The motor also features a 20-bit single turn absolute encoder for feedback.
