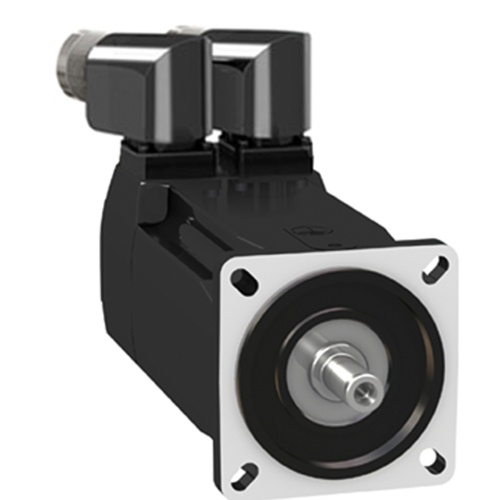

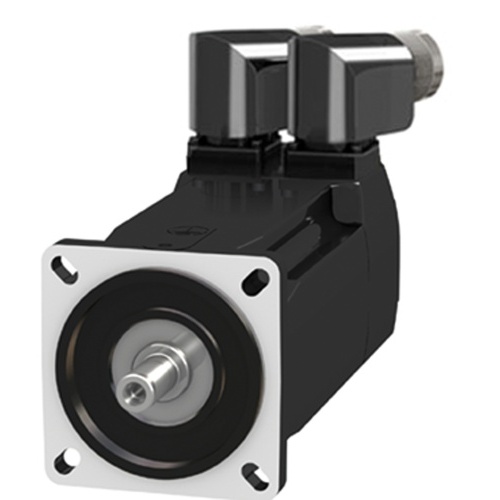

Schneider Electric BMH0701T02A2A Servo Motor - 115-230 Volt, 9.56 Amp, 1.05 W, 8000 RPM, 3Ph
Normally In Stock
Code: 495224
Schneider Electric BMH0701T02A2A servo motor BMH, Lexium 32, 1.4Nm, 8000rpm, untapped shaft, without brake, IP54, 128 multiturn encoder
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2089.85
Sale Price
$1741.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BMH0701T02A2A servo motor is a three-phase motor with a maximum mechanical speed of 8000 rpm and a maximum radial force of up to 660 N. It has a length of 4.80 inches (122 mm), a shaft diameter of 0.43 inches (11 mm), and a rotor inertia of 0.59 kg.cm². The motor is compatible with LXM32.D18M2 (115 V) and LXM32.U90M2 (230 V) drives and has a nominal output power of 450 W. It has an IP54 degree of protection and uses multiturn SinCos Hiperface feedback.
Specifications
Motor Voltage Phases
3 Phase
Motor Voltage
230 Volt
Manufacturer
Schneider Electric
Motor Voltage
115 Volt
Motor Watts
1.05 W
Motor RPM's
8000 RPM
Motor Amperage (Full Load)
9.56 Amp
Features
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW
The 10-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end without holding brake
It is an equipped with a multi-turn SinCos Hiperface® feedback with 1,31,072 points/turn x 4096 turns speed feedback resolution
It is a servo motor with a rated supply voltage of 240V, a continuous stall current of 2.85A and a continuous power of 1.05W
The shaft dimensions are 11mm (diameter) x 23mm (length)
It is furnished with rotatable right angled connectors for electrical connection
It is an IP54 rated product
The length of this product is 122mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole
It weighs 1.6kg
This range is compatible with Lexium 32 servo drives
This product is compatible with LXM32.D18M2 at 115V single phase and LXM32.U90M2 at 230V single phase
It supports 70mm international standard flange mount with a natural convection cooling system
Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality
The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
