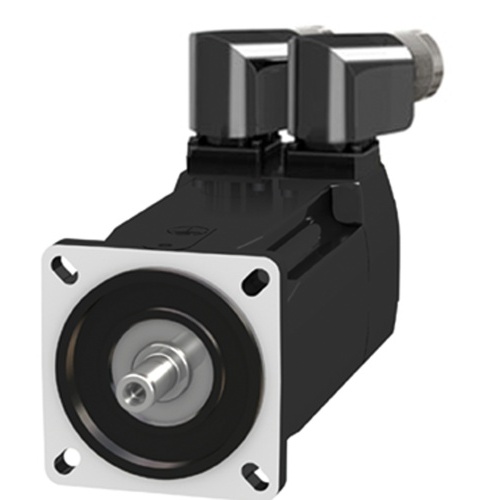

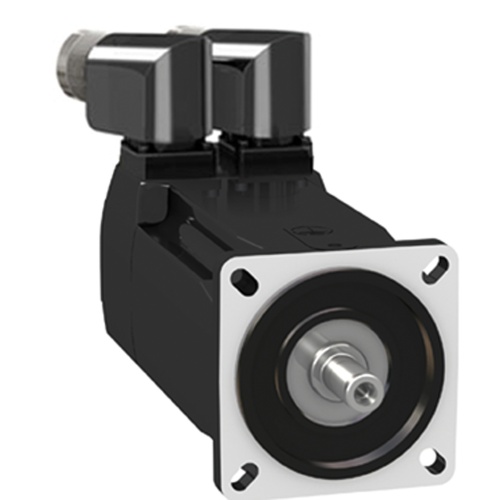

Schneider Electric BMH0703T22A2A Servo Motor - 115-230 Volt, 17.84 Amp, 1.68 W, 8000 RPM, 3Ph
Normally In Stock
Code: 495233
Schneider Electric BMH0703T22A2A servo motor BMH, Lexium 32, 3.4Nm, 8000rpm, untapped shaft, without brake, IP65, IP67, 128 multiturn encoder
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$3465.40
Sale Price
$2887.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BMH0703T22A2A Servo Motor is a three-phase motor with a maximum mechanical speed of 8000 rpm. It has a continuous stall torque of 30.09 lbf.in and a peak stall torque of 77.00 lbf.in. With a smooth shaft and rotatable right-angled connectors, it has a length of 7.32 in and a shaft diameter of 0.55 in. Its IP65 standard protection makes it suitable for a variety of applications.
Specifications
Motor Voltage Phases
3 Phase
Motor Voltage
230 Volt
Manufacturer
Schneider Electric
Motor Voltage
115 Volt
Motor RPM's
8000 RPM
Motor Watts
1.68 W
Motor Amperage (Full Load)
17.84 Amp
Features
Three book-size servo drive models and two servo motor families plus a full range of intelligent options.
Lexium 32 simplifies all aspects of the machine lifecycle from engineering to maintenance.
A speed bandwidth of 1,600 Hz provides an outstanding response.
With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume.
This saves on cabinet space and size, reduces the machine footprint and decreases costs.
Powerful integration software simplifies the entire process from planning to commissioning.
The new Autotuning function makes tuning easier than ever before.
Lexium 32 offers a host of features for rapid installation and maintenance e. g. removable, color-coded connectors.
SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable.
Lexium 32 supports a wide selection of interfaces for fast integration into architectures
Communication boards, encoder options and accessories adapt your Lexium 32 solution
Leverage the full power of existing assets such as applications or legacy motors.
"Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtimes and less wiring.
The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2).
