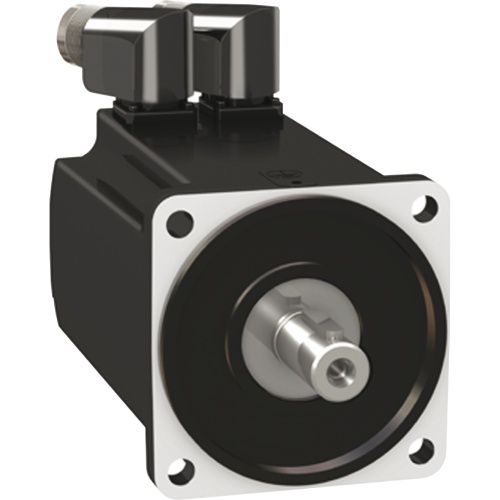

Schneider Electric BMH1003P11F2A Servo Motor - 400-480 Volt, 29.1 Amp, 3.3 W, 6000 RPM, 3Ph
Normally In Stock
Code: 495235
Schneider Electric BMH1003P11F2A servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP54, 128bit encoder
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$3077.64
Sale Price
$2564.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

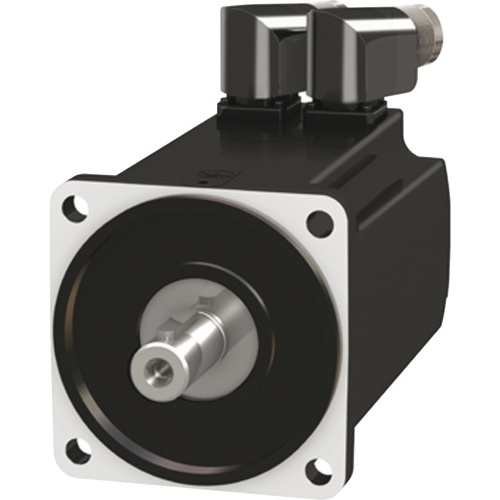

Schneider Electric BMH1003P11F2A is a three-phase servo motor with a maximum mechanical speed of 6000 rpm. It has a continuous stall torque of 74.35 lbf.in (8.4 N.m) and a peak stall torque of 222.15 lbf.in (25.1 N.m). The motor features rotatable right-angled connectors for electrical connection and natural convection cooling. It has a holding brake and a rated supply voltage of 480V. The motor is compatible with the Lexium 32 range and has an IP54 degree of protection. It weighs 17.97 lbs (8.15 kg) and has a shaft diameter of 0.75 in (19 mm).
Specifications
Motor Voltage Phases
3 Phase
Manufacturer
Schneider Electric
Motor Voltage
400 Volt
Motor Voltage
480 Volt
Motor Watts
3.3 W
Motor RPM's
6000 RPM
Motor Amperage (Full Load)
29.1 Amp
Features
Superior performance and compact design
Simplified engineering, installation and commissioning
Integrated safety
