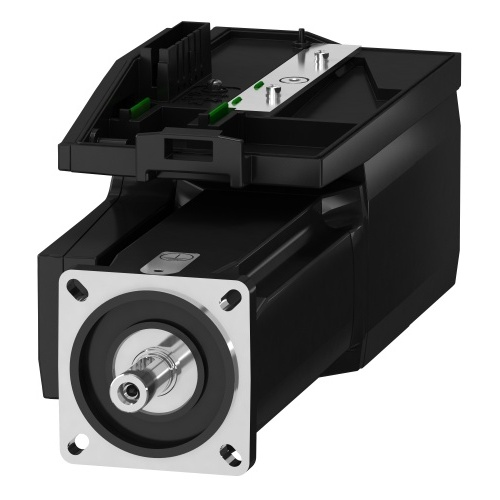

Schneider Electric BMI0702P22F Servo Motor - 208-480 Volt, 9.6 Amp, 8000 RPM, 3Ph
Normally In Stock
Code: 495254
Schneider Electric BMI0702P22F servo motor BMI 3-phase - untapped IP65 multiturn - 131072 p/t x 4096 t - brake
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$4095.94
Sale Price
$3413.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BMI0702P22F is a three-phase servo motor with a power stage. It has a maximum mechanical speed of 8000 rpm and a maximum radial force of 710 N at 1000 rpm. With a continuous stall torque of 2.48 N.m and a peak stall torque of 6.8 N.m, this motor is suitable for various applications. It features a holding brake and a centring collar depth of 2.5 mm. With a rated supply voltage of 208...480 V and an integrated EMC filter, it offers reliable performance. Its IP65 degree of protection ensures durability. Compatible with Lexium 32i range.
Specifications
Motor Voltage Phases
3 Phase
Manufacturer
Schneider Electric
Motor Amperage (Full Load)
9.6 Amp
Motor Voltage
208 Volt
Motor Voltage
400 Volt
Motor Voltage
480 Volt
Motor RPM's
8000 RPM
Features
The Lexium 32i series is an important component of a control system's safety system because it includes a Safe Torque Off (STO) feature that avoids accidental servo motor activation.
This function complies with IEC/EN 61508 level SIL3 for electrical installations and IEC/EN 61800-1 for power drives.
It simplifies the installation of advanced safety devices while improving maintenance performance by lowering service time. This feature requires a bus connection module with the STO option.
The Lexium 32i range's adaptability allows for excellent integration control system topologies
The Lexium 32i includes logic inputs and outputs that can be adjusted to meet application requirements.
