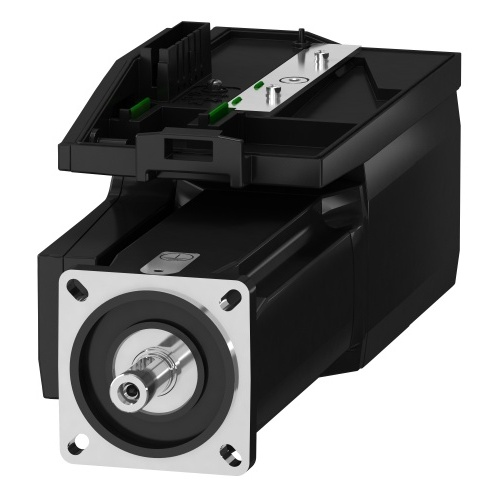

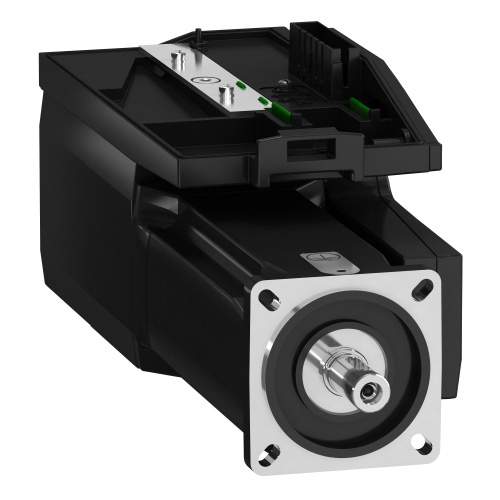

Schneider Electric BMI0702T16A servo motor with power stage is a single phase unit with a maximum mechanical speed of 8000 rpm and a maximum radial force of 710 N at 1000 rpm. It has a length of 10.55 in (268 mm) and a circle diameter of mounting holes ranging from 2.95 to 3.23 in (75 to 82 mm). The motor has a continuous stall torque of 21.95 lbf.in (2.48 N.m) and a peak stall torque of 58.41 lbf.in (6.6 N.m). It operates at a supply voltage of 115 to 230 V and has a nominal output power of 700 W at 230 V and 400 W at 115 V. The servo motor is compatible with the Lexium 32i range and has an IP degree of protection of Shaft IP54 and Housing IP65.
