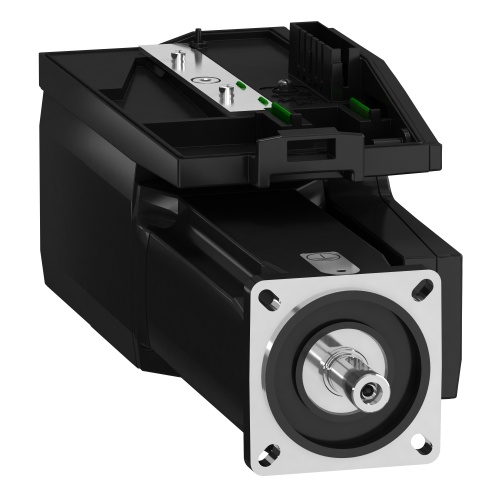

Schneider Electric BMI0702T22F Servo Motor - 115-230 Volt, 17.7 Amp, 8000 RPM, 1Ph
Normally In Stock
Code: 495258
Schneider Electric BMI0702T22F servo motor BMI 1-phase - untapped IP65 multiturn - 131072 p/t x 4096 t - brake
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$3777.22
Sale Price
$3147.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BMI0702T22F servo motor with power stage is a single-phase motor with a maximum mechanical speed of 8000 rpm. It has a continuous output current of 2.6 A and a peak stall torque of 58.41 lbf.in. With an IP65 degree of protection, it is compatible with the Lexium 32i range and comes with a holding brake. The motor is designed for printed circuit board connector electrical connection and natural convection cooling. It also features Absolute multiturn SinCos Hiperface feedback and integrated EMC filter.
Specifications
Motor Voltage Phases
3 Phase
Manufacturer
Schneider Electric
Motor Amperage (Full Load)
12.5 Amp
Motor Voltage
208 Volt
Motor Voltage
400 Volt
Motor Voltage
480 Volt
Motor RPM's
8000 RPM
Features
The Lexium 32i series is an important component of a control system's safety system because it includes a Safe Torque Off (STO) feature that avoids accidental servo motor activation.
This function complies with IEC/EN 61508 level SIL3 for electrical installations and IEC/EN 61800-1 for power drives.
It simplifies the installation of advanced safety devices while improving maintenance performance by lowering service time. This feature requires a bus connection module with the STO option.
The Lexium 32i range's adaptability allows for excellent integration control system topologies
The Lexium 32i includes logic inputs and outputs that can be adjusted to meet application requirements.
