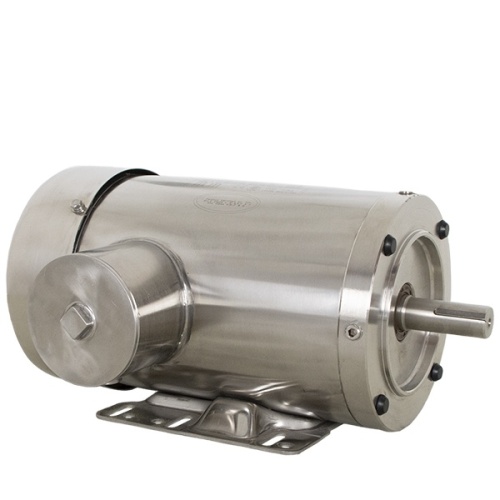

NAE SS56C1/2M-6-B - TEFC, 1.1/2.2 Amp, 0.5 HP, 208-460 VAC, 1200 RPM
Normally In Stock
Code: 555192
NAE-SS56C1/2M-6-B Special Purpose - Washdown Duty - Stainless Steel - Round Conduit Box with Encapsulation - 56C Frame - 1.1/2.2 Amp - 0.5 HP - TEFC - 1200 RPM - 208-460 VAC
$717.76
Sale Price
$598.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE-SS56C1/2M-6-B Special Purpose - Washdown Duty - Stainless Steel - Round Conduit Box with Encapsulation - 56C Frame - 1.1/2.2 Amp - 0.5 HP - TEFC - 1200 RPM - 208-460 VAC
Specifications
Features
.33-20 HP in stock
Service factor: 1.15 @ 60 Hz, 1.0 @ 50 Hz
NEMA Design B Performance/ High starting torque
Round conduit box for easy cleaning
Encapsulated windings
Dual-drilled feet for mounting flexibility
Double sealed bearings on both ends
2-year warranty
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
IP66 protection
Condensation drains with plugs
NEMA MG-1, Table 12-12
40° C ambient continuous duty
Dual voltage ratings suitable for part wind start on lower voltage
Windings rated for 2200V peak voltage spikes
.304 stainless steel shaft and body
