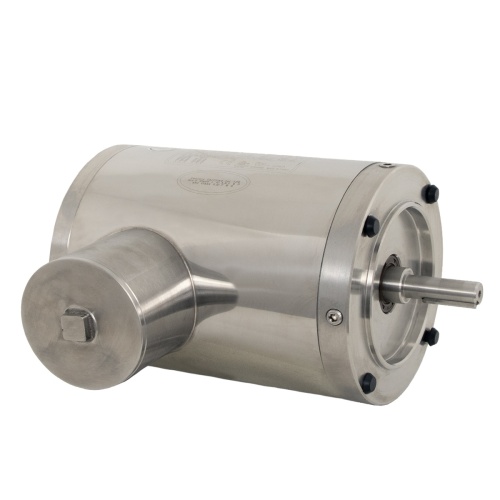

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
NAE SS56C3/4M-2-RB-A-NV - TENV, 1.3/2.6 Amp, 0.75 HP, 208-460 VAC, 3600 RPM
Normally In Stock
Code: 555211
NAE-SS56C3/4M-2-RB-A-NV Special Purpose - Washdown Duty - Stainless Steel - Round Conduit Box / Round Body - 56C Frame - 1.3/2.6 Amp - 0.75 HP - TENV - 3600 RPM - 208-460 VAC
$495.20
Sale Price
$412.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE-SS56C3/4M-2-RB-A-NV Special Purpose - Washdown Duty - Stainless Steel - Round Conduit Box / Round Body - 56C Frame - 1.3/2.6 Amp - 0.75 HP - TENV - 3600 RPM - 208-460 VAC
Specifications
Features
.33-20 HP in stock
Service factor: 1.15 @ 60 Hz, 1.0 @ 50 Hz
NEMA Design B Performance/ High starting torque
Round conduit box for easy cleaning
Encapsulated windings
Dual-drilled feet for mounting flexibility
Double sealed bearings on both ends
2-year warranty
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
IP66 protection
Condensation drains with plugs
NEMA MG-1, Table 12-12
40° C ambient continuous duty
Dual voltage ratings suitable for part wind start on lower voltage
Windings rated for 2200V peak voltage spikes
.304 stainless steel shaft and body
