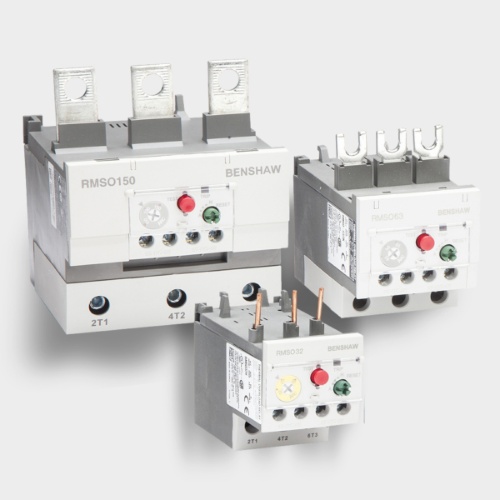

Benshaw RMSO-95H-90A Bimetallic Overload Relay - 690 V, 80–100 Amp, Class 20
Normally In Stock
Code: 557866
Benshaw RMSO-95H-90A - RMSO Series - 80–100 Amp - 690 V - IP20 - Class 20 - Screw Clamp - Three Pole
Condition: New
Usually ships Same Day or Next Day$159.67
Sale Price
$133.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Benshaw RMSO-95H-90A - RMSO/SPO Series Overload Relays are bimetallic-style relays designed to protect AC-3 circuits (up to 150A @ 690V) and motors against overloads, phase failure, long starting times and stalling of the motor. RMSO and SPO Series overload relays can be integrally mounted to Benshaw RC and RSC contactors for thermal overload protectio
Specifications
Manufacturer
Benshaw
Starter Voltage
690 VAC
Starter Housing
IP20
Component
Bimetallic Overload Relay
Starter Current Rating
80–100 Amp
Features
IP20 protection (IEC 60 529)
Trip indicator
Reset button/selector for manual or auto reset
Test trip device
Finger-safe terminals
Overload adjustment dial cover
1 NO and 1 NC auxiliary contacts
Identification labels
Temperature compensation
-60°C to 70°C storage temperature range
-5°C to 55°C operating temperature range
Differential-type phase loss protection
6 kV dielectric strength at 50 Hz (IEC 25505)
6 kV impulse withstand voltage (IEC 801-5)
