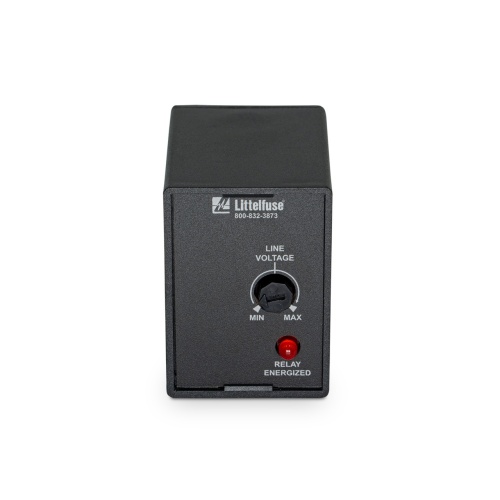

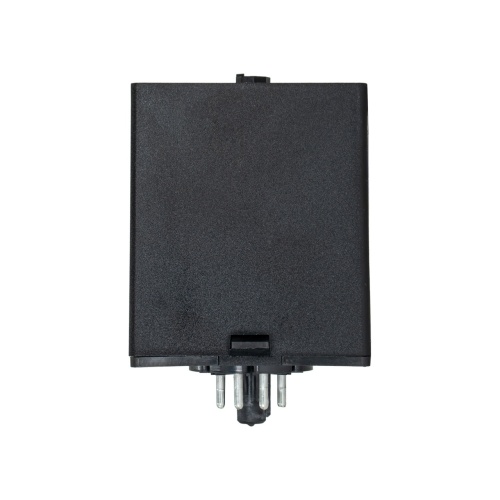

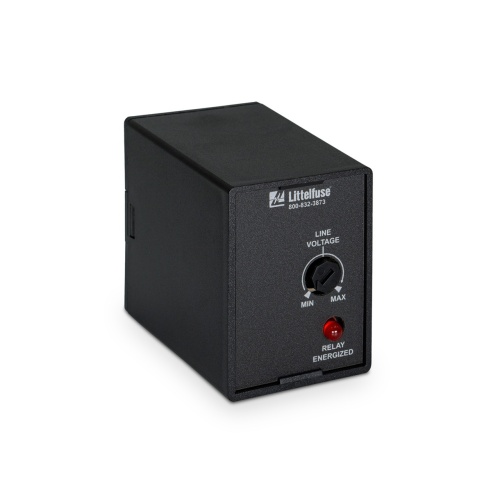

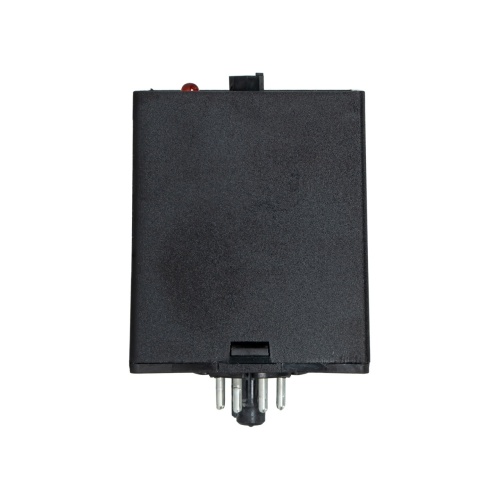

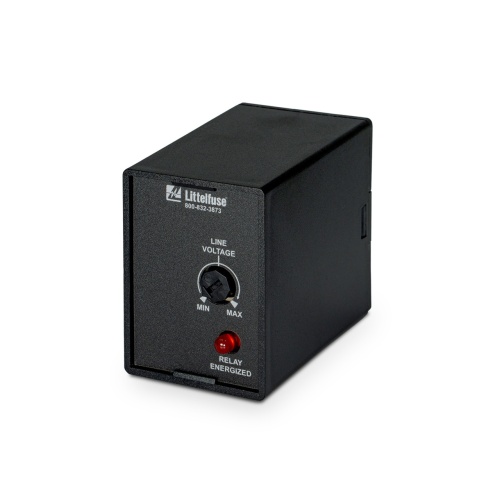

Littelfuse PLR240A Voltage Monitoring - 190-270 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565384
Littelfuse PLR240A - PLR Series – Voltage Monitor Series - 190-270 Volt - Plug-in socket rated 600V - 5 A resistive @ 240 VAC; 1/4 hp @ 120 VAC
Condition: New
Usually ships Same Day or Next Day$182.87
Sale Price
$152.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse PLR240A is an octal 8-pin plug-in relay with a 5 A resistive load rating at 240 Volts, and a 1/4 hp rating at 120 Volts. It provides surge protection according to IEEE C62.41-1991 Level B standards. This relay is compatible with 3-phase delta or WYE input types, and has an adjustable undervoltage trip voltage range of 170-240 Volts. The input voltage maximum is 270 Volts, and the maximum output voltage is 250 Volts. Response times for drop-out and pull-in are ≤100 ms and ≤400 ms respectively.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Voltage Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Plug-In Socket
Coil Voltage Rating
190-270 Volt
