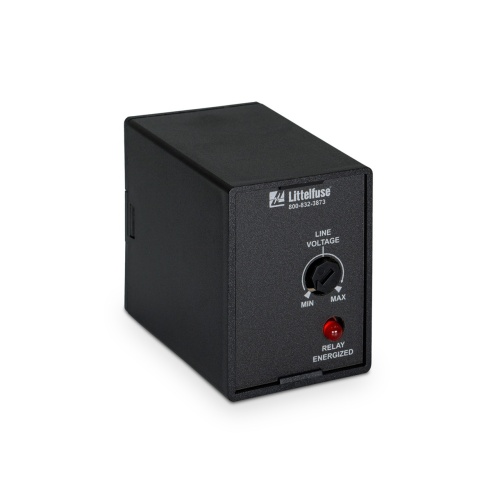

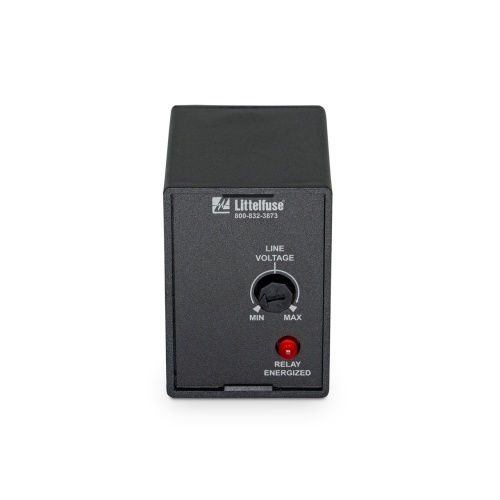

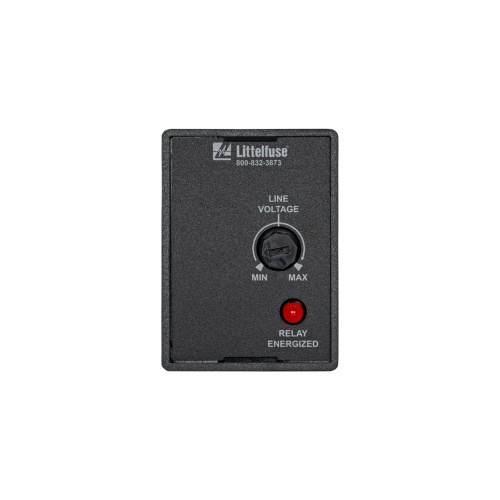

Littelfuse PLR380A Voltage Monitoring - 340-450 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565385
Littelfuse PLR380A - PLR Series – Voltage Monitor Series - 340-450 Volt - Plug-in socket rated 600V - 5 A resistive @ 240 VAC; 1/4 hp @ 120 VAC
Condition: New
Usually ships Same Day or Next Day$183.00
Sale Price
$152.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

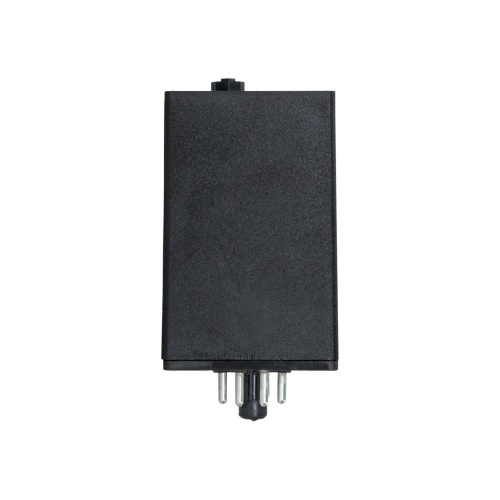

Littelfuse PLR380A is a compact and versatile plug-in relay with an output load rating of 5 A resistive @ 240 Volts or 1/4 hp @ 120 Volts. It features an octal 8-pin termination type for easy installation. With an adjustable undervoltage trip voltage range of 310 - 410 Volts, it provides reliable protection. The surge protection meets IEEE C62.41-1991 Level B standards. Suitable for 3-phase delta or WYE input without connection to neutral, it supports a maximum input voltage of 480 Volts. The drop out response time is ≤100 ms with a hysterisis of ≅2%, while the pull-in response time is ≤400 ms with a hysterisis of ≅2%.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Voltage Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Plug-In Socket
Coil Voltage Rating
340-450 Volt
