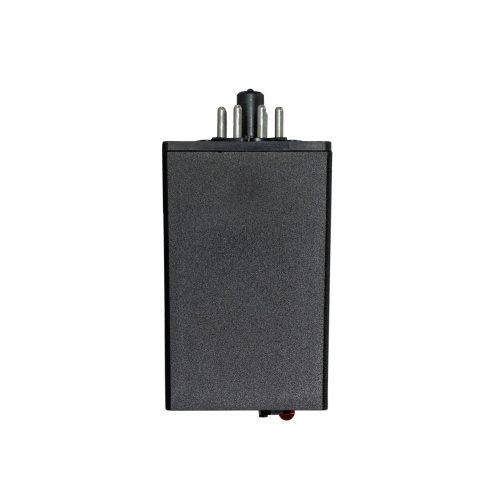

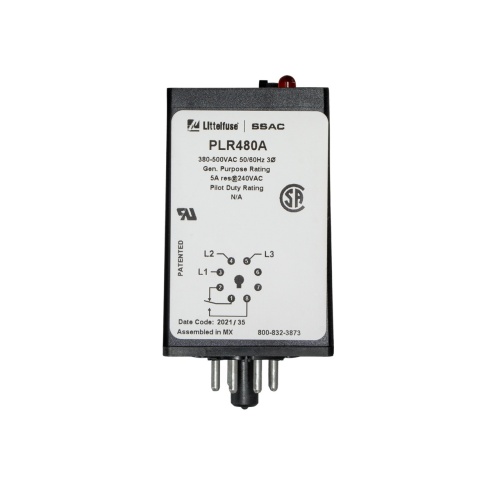

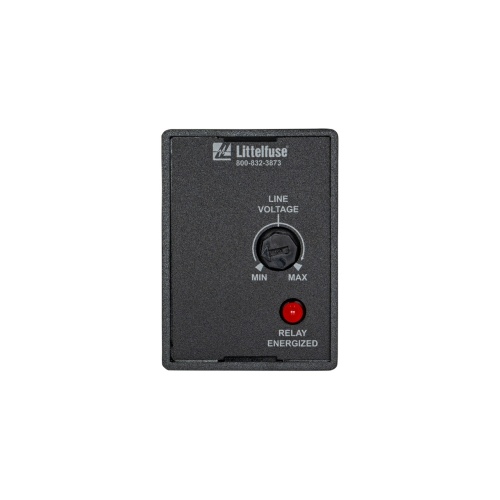

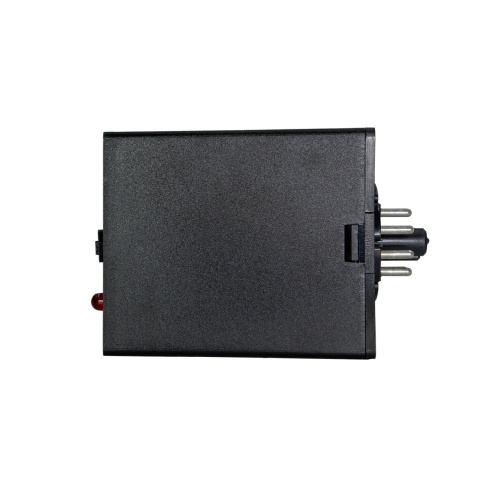

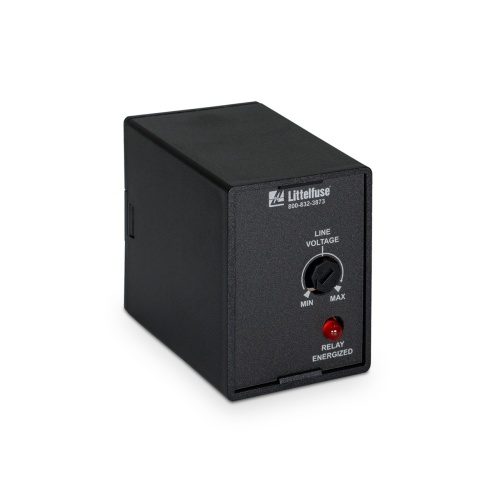

Littelfuse PLR480A Voltage Monitoring - 380-500 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565386
Littelfuse PLR480A - PLR Series – Voltage Monitor Series - 380-500 Volt - Plug-in socket rated 600V - 5 A resistive @ 240 VAC; 1/4 hp @ 120 VAC
Condition: New
Usually ships Same Day or Next Day$183.00
Sale Price
$152.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse PLR480A is a 8-pin plug-in relay with an output load rating of 5A resistive @ 240V and 1/4 hp @ 120V. It has an adjustable undervoltage trip voltage of 350-480V and surge protection compliant with IEEE C62.41-1991 Level B. It accepts a 3-phase delta or WYE input type with no connection to neutral. The input phase sequence is A, B, C and the maximum input voltage is 530V. It has a dropout response time of ≤100ms with a hysterisis of ≅2%, and a pull-in response time of ≤400ms with a hysterisis of ≅2%. Maximum output voltage is 250V.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Voltage Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Plug-In Socket
Coil Voltage Rating
380-500 Volt
