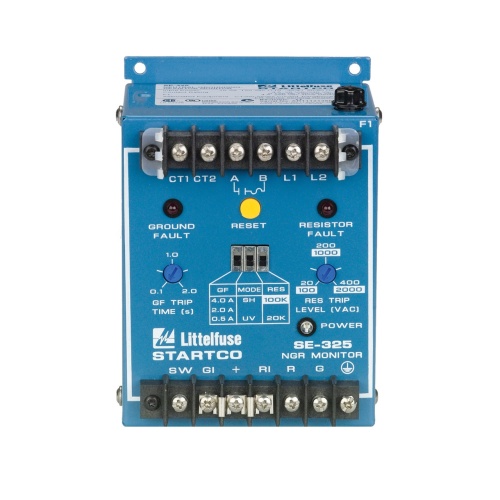

Littelfuse SE-325DN NGR Monitor 120 VAC/VDC Non-Latching
Normally In Stock
Code: 565558
Littelfuse SE-325DN - SE-325 Series – Neutral-Grounding-Resistor Monitor Series - 120 Volt, 120 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$3466.85
Sale Price
$2889.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-325DN is a conformally coated relay with 1 Form A (N.O.) contacts. Operating as fail-safe or non-fail-safe, it supports resistance grounded AC systems with a frequency of 50, 60, or ASD. Reset options include front-panel switch or remote kit. Harmonic filtering and IEEE device numbers 50G, 50N, 51G, 51N, 59N, and 86 are integrated. GF trip time ranges from 0.1 to 2.0s, with a GF trip level of 0.5 to 4.0A. RF trip time is 5s, and RF trip level varies between 20-400V for systems up to 5kV and 100-2000V for systems over 5kV. Supply voltage is AC/DC 120V, and reset is latching.
Specifications
Manufacturer
Littelfuse
Coil Voltage Rating
120 Volt
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
120 Volt (DC)
