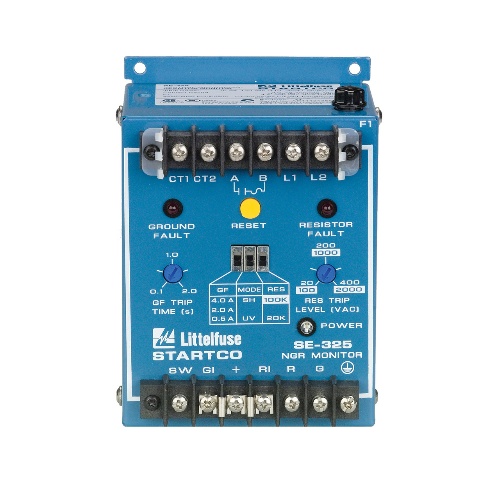

Littelfuse SE-325DSN NGR Mon 120 VAC/VDC Non-Latch Ext Rf Time
Normally In Stock
Code: 565561
Littelfuse SE-325DSN - SE-325 Series – Neutral-Grounding-Resistor Monitor Series - 120 Volt, 120 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$3933.42
Sale Price
$3277.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-325DSN is a standardized conformally coated device suitable for resistance grounded AC systems with a frequency range of 50 and 60 Hz. It features fail-safe/non-fail-safe operation, 1 Form A (N.O.) relay contacts, and front-panel or remote reset options. The device incorporates standard harmonic filtering and has IEEE device numbers 50G, 50N, 51G, 51N, 59N, and 86. Supply voltage options include 120 V AC and 120 V DC, with an auto-manual reset that is non-latching. It offers a GF trip time range of 0.1 to 2.0 seconds and a GF trip level range of 0.5 to 4.0 A. For RF trip level, it covers 20 to 400 V (for systems up to 5 kV) and 100 to 2000 V (for systems over 5 kV), achieving a trip time of 20 seconds.
Specifications
Manufacturer
Littelfuse
Coil Voltage Rating
120 Volt
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
120 Volt (DC)
