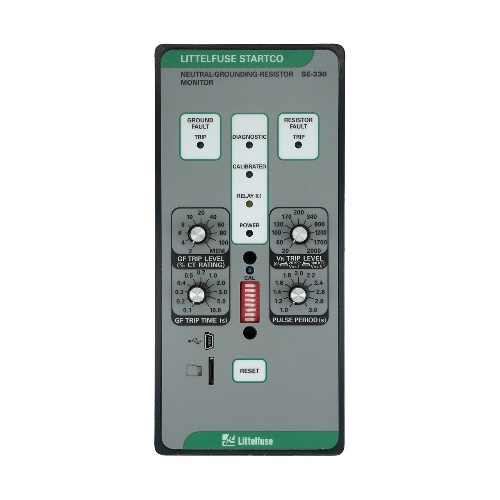

Littelfuse SE-330-00-01 NGR Monitor NC
Normally In Stock
Code: 565582
Littelfuse SE-330-00-01 - SE-330 Series – Neutral-Grounding-Resistor Monitor Series - 65-265 Volt, 85-275 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$5710.81
Sale Price
$4759.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-330-00-01 is a multi-functional relay with a range of features to ensure reliable protection in resistance grounded AC systems. It offers multiple relay contact configurations, fail-safe/non fail-safe operation, and harmonic filtering. The relay can be reset using a front-panel switch or remotely with a normally open contact. With a wide supply voltage range and multiple communication options, it provides flexibility for various applications. Rated for system voltages up to 5 kV and offering a GF trip level range of 2-100% of CT-Primary Rating, it meets a variety of requirements.
Specifications
Manufacturer
Littelfuse
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
65-265 Volt
Coil Voltage Rating
85-275 Volt (DC)
Features
Continuous NGR monitoring
Shorted NGR detection
Ground-fault detection
Adjustable pickup (2–100 %)
Adjustable time delay (0.1–10 s)
Universal CT compatibility
Programmable output contacts
Selectable contact operating mode
Analog output (4–20 mA)
Pulsing output (SE-330 only)
Detects resistor failure within seconds, reduces transient-overvoltage risk, removes risk of ground-fault detection failure
Detects a ground fault on the neutral that could bypass the resistor, ensures fault current is not higher than expected
Main or backup protection to detect a ground fault anywhere on the monitored system
Select greatest sensitivity without false operation, adjustable in 1 % increments
Adjustable trip delay allows quick protection and system coordination
