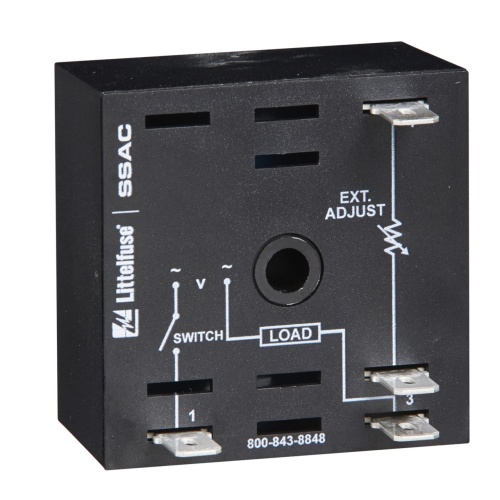

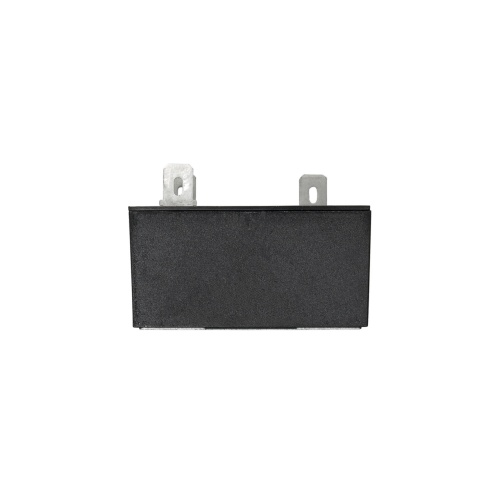

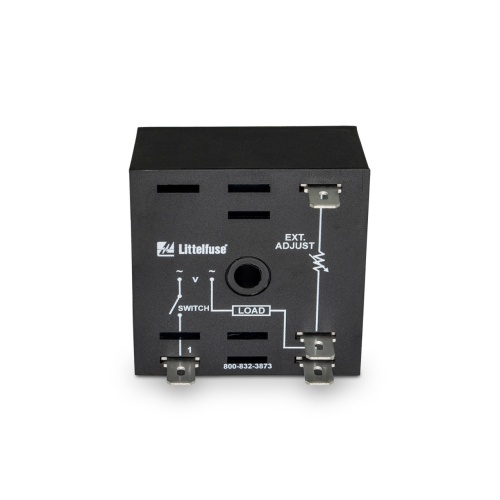

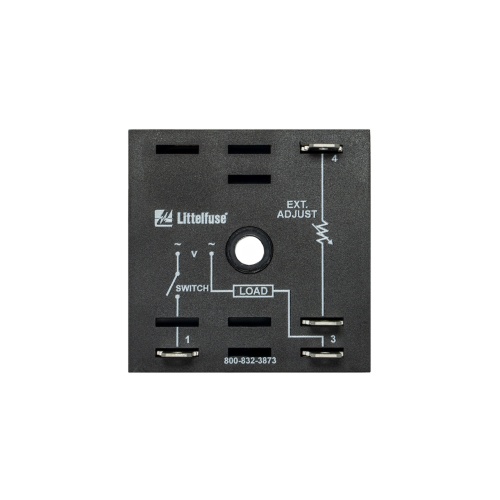

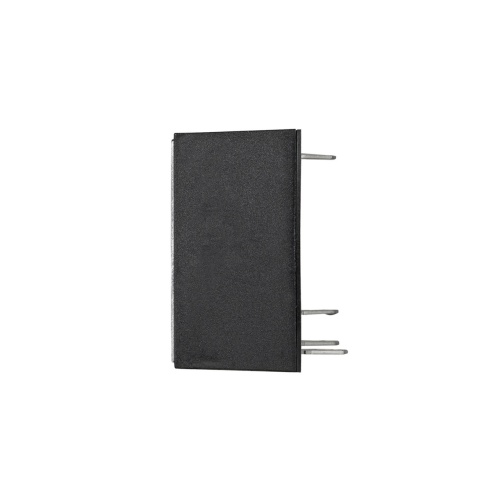

Littelfuse PHS230A10 AC Phase Control
Normally In Stock
Code: 566098
Littelfuse PHS230A10 - PHS Series - 230 Volt - Surface mount with one #10 (M5 x 0.8) screw - Steady state (100% on): 10 A; Inrush: 100 A
Condition: New
Usually ships Same Day or Next Day$72.36
Sale Price
$60.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse PHS230A10 is a 10 A output load rating power relay with 0.25 in. male quick connect terminals. It operates at 50/60Hz input line frequency with a ±20% input tolerance. With a humidity resistance of 95% non-condensing, it ensures reliability. It has a dielectric breakdown of ≥2000 terminals to mounting surface and an insulation resistance of ≥100. The output voltage drop is approximately 2.0V at rated current, and it has a minimum output load current of 100A.
Specifications
Manufacturer
Littelfuse
Coil Voltage Rating
230 Volt
Relay Mounting
Surface Mount
Component
Single Function Relay
