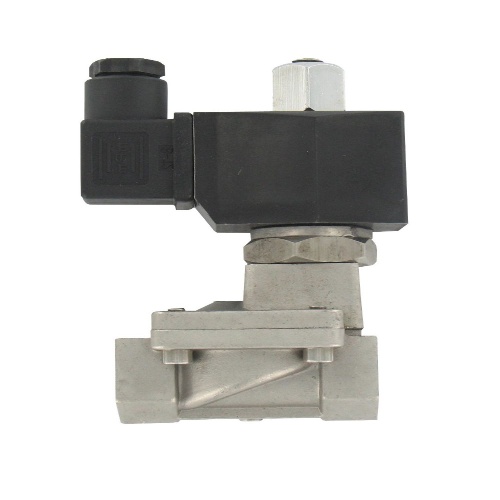

Dwyer SSV-S1F1 is a 2-way guided solenoid valve designed for use with compatible gases and liquids. It has a process temperature range of up to 248°F and an ambient temperature range of 32 to 149°F. The valve is powered by standard 110 VAC, with optional 220 VAC or 24 VDC available upon consultation. It features a NEMA 13 (IP54) enclosure rating and DIN electrical connections. The valve can be mounted in any orientation, with the best performance achieved when the solenoid is positioned vertically above the valve. The wetted material is composed of 316 SS for the body, 304 SS for the spring, and fluoroelastomer for the seal. The pressure limit is 174 psi, and the valve has a female NPT process connection. The valve is made of nylon and is available in line sizes ranging from 1/8 to 2" NPT. The maximum operating pressure varies from 0 to 87 psi for 1/8 to 1/4" sizes and 7.3 psi to 116 psi for 3/8 to 2" sizes. The valve is designed for normally open (NO) operation.
