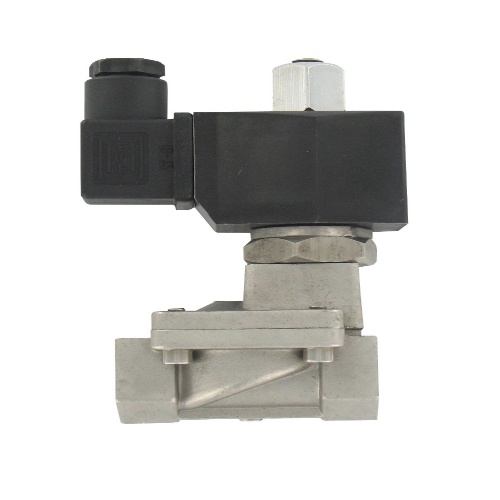

Dwyer SSV-S1F3 Ss Solenoid Valves – 2-Way Guided No
Normally In Stock
Code: 569675
Dwyer SSV-S1F3 - 2-way 316SS solenoid valve, 1/8", 0-6 bar, fkm seal, 24 VAC
Condition: New
Usually ships Same Day or Next Day$178.72
Sale Price
$148.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SSV-S1F3 SS Solenoid Valves are 2-way guided NO valves suitable for compatible gases and liquids. They have a temperature range of 32 to 149°F (0 to 65°C) and a maximum operating pressure ranging from 0 to 116 psi (0 to 8 bar), depending on the line size. The valves operate on a standard 110 VAC power requirement, with optional 220 VAC or 24 VDC. They have a NEMA 13 (IP54) enclosure rating and feature a DIN connection for electrical connections. The wetted materials include 316 SS for the body, 304 SS for the spring, and Fluoroelastomer for the seal. These valves can be mounted in any position, but the solenoid is best positioned vertically above the valve. The process connection is a female NPT, and the line sizes range from 1/8" to 2" NPT. The valves are of the NO type of operation and have a pressure limit of 174 psi (12 bar).
Specifications
Manufacturer
Dwyer
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) IP Protection
IP54
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) Supply Voltage
110 VAC
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Supply Voltage
220 VAC
Component
Solenoid Valve
(Instrument-Sensor) Temperature Range
Ambient: 32 - 149°F/0 - 65°C
Sub Component
Ss Solenoid Valves – 2-Way Guided No
(Instrument-Sensor) Temperature Range
Process: 248°F/120°C
Features
Can be oriented in any position
Compact design
Field replaceable coils
