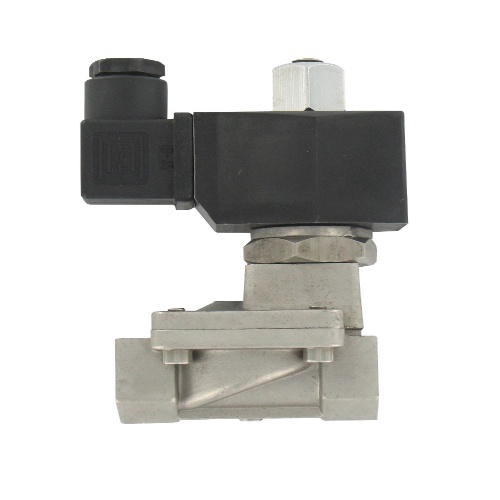

Dwyer SSV-S1F4 Ss Solenoid Valves – 2-Way Guided No
Normally In Stock
Code: 569676
Dwyer SSV-S1F4 - 2-way 316SS solenoid valve, 1/8", 0-6 bar, fkm seal, 24 VDC
Condition: New
Usually ships Same Day or Next Day$178.72
Sale Price
$148.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SSV-S1F4 is a 2-way guided solenoid valve made of 316 SS, with a maximum operating pressure of 174 psi. It has a temperature range of 32 to 248°F, and a power requirement of 110 VAC (220 VAC or 24 VDC available upon request). The valve is compatible with gases and liquids, and its electrical connections are DIN connections. It has a NEMA 13 enclosure rating and can be mounted in any position. The solenoid valve has a female NPT process connection and uses a nylon material for performance and durability.
Specifications
Manufacturer
Dwyer
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) IP Protection
IP54
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) Supply Voltage
110 VAC
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Supply Voltage
220 VAC
Component
Solenoid Valve
(Instrument-Sensor) Temperature Range
Ambient: 32 - 149°F/0 - 65°C
Sub Component
Ss Solenoid Valves – 2-Way Guided No
(Instrument-Sensor) Temperature Range
Process: 248°F/120°C
Features
Can be oriented in any position
Compact design
Field replaceable coils
