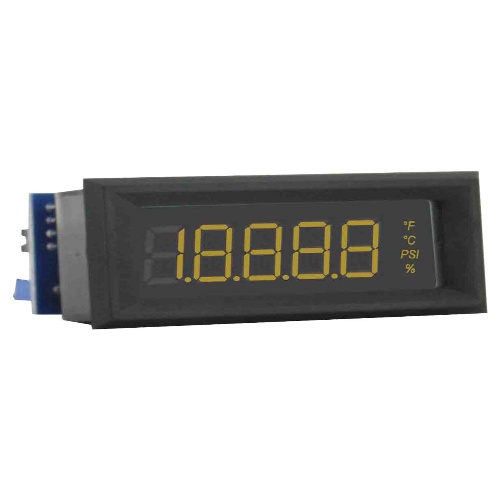

Dwyer DPML-402 LCD Digital Panel Meter
Normally In Stock
Code: 570876
Dwyer DPML-402 - LCD Digital panel meter, loop powered 4 to 20 mA, green segments.
Condition: New
Usually ships Same Day or Next Day$213.19
Sale Price
$177.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPML-402 is an LCD Digital Panel Meter with a temperature range of 32 to 122°F (0 to 50°C) and an accuracy of ±(0.1% FS + 2 count). It has adjustable zero and span adjustments of ±19999 counts and can be powered by control loop or 12VDC/24VDC. The 4-1/2 digit display has 4-position, user-selectable decimal points and a conversion rate of 3 per second. The meter mounts via snap-in bezel and has screw terminals for easy connection. It is available with different engineering units and features automatic polarity and a 24VDC backlight power supply.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
