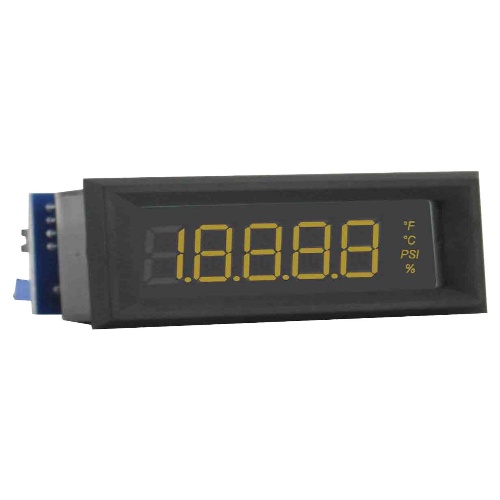

Dwyer DPML-403P LCD Digital Panel Meter
Normally In Stock
Code: 570879
Dwyer DPML-403P - LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, red segments.
Condition: New
Usually ships Same Day or Next Day$209.95
Sale Price
$174.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPML-403P is an LCD Digital Panel Meter with a temperature range of 32 to 122°F (0 to 50°C) and an accuracy of ±(0.1% FS + 2 count). It has adjustable zero and span adjustments of ±19999 counts and a mounting style of snap-in bezel. The display is 4-1/2 digits with 7 segments and 0.45" height. The input options are 4 to 20 mA or 0 to 200 mVDC, 0 to 5 VDC, or 0 to 10 VDC. It has a 10-minute warm-up time, automatic polarity with "-" displayed, and a 24 VDC @ 35 mA backlight power supply.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
