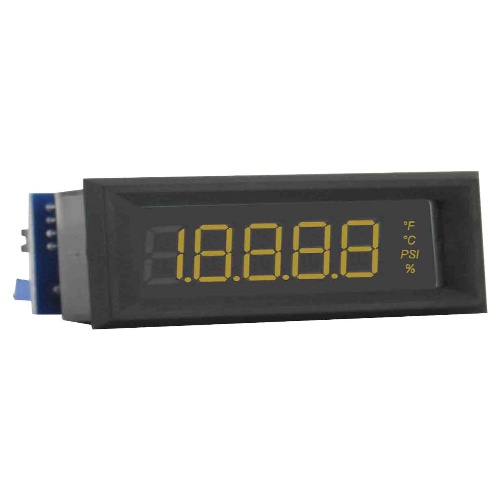

Dwyer DPML-500 LCD Digital Panel Meter
Normally In Stock
Code: 570882
Dwyer DPML-500 - DPML-500 12/24 VDC NO BKLITE
Condition: New
Usually ships Same Day or Next Day$200.50
Sale Price
$167.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPML-500 is an LCD digital panel meter with a temperature range of 32 to 122°F (0 to 50°C). It has an accuracy of ±(0.1% FS + 2 count) and adjustable zero and span adjustments (±19999 counts). The meter has a snap-in bezel mount and a 4-1/2 digit, 7 segment display. It has screw terminals for easy connection and accepts input signals of 4 to 20 mA or 0 to 200 mVDC, 0 to 5 VDC, or 0 to 10 VDC. The digital panel meter has a conversion rate of 3 per second and a warm-up time of 10 minutes. The backlight is powered by 24 VDC and has a power supply of 35 mA.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
