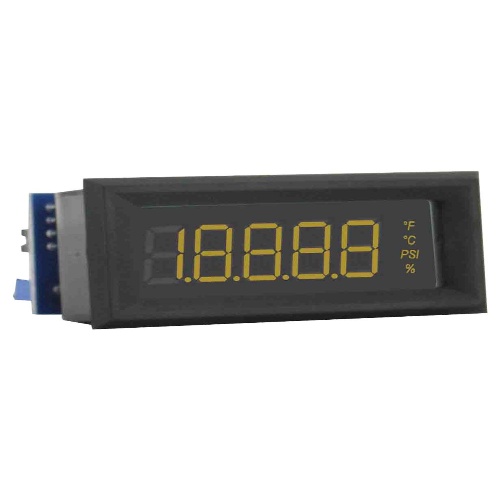

Dwyer DPML-504 LCD Digital Panel Meter
Normally In Stock
Code: 570890
Dwyer DPML-504 - DPML-504 12/24 VDC BLK #/GRN
Condition: New
Usually ships Same Day or Next Day$200.50
Sale Price
$167.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPML-504 is a compact LCD Digital Panel Meter with a temperature range of 32 to 122°F (0 to 50°C). It offers an accuracy of ± (0.1% FS + 2 count) and adjustable zero and span adjustments. The snap-in bezel mount and screw terminals make installation easy. It features a 4-1/2 digit display with 7 segments and a 0.45" (11.4 mm) height. The input options include 4-20 mA or 0-200 mVDC, 0-5 VDC, or 0-10 VDC with DPML-4XX(P) and DPML-5XX(P) respectively. The unit is equipped with automatic polarity and a 4-position, user-selectable decimal point. The conversion rate is 3 per second, and it requires a 10-minute warm-up time. It operates at 24 VDC and has a backlight power supply of 35 mA typical.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
