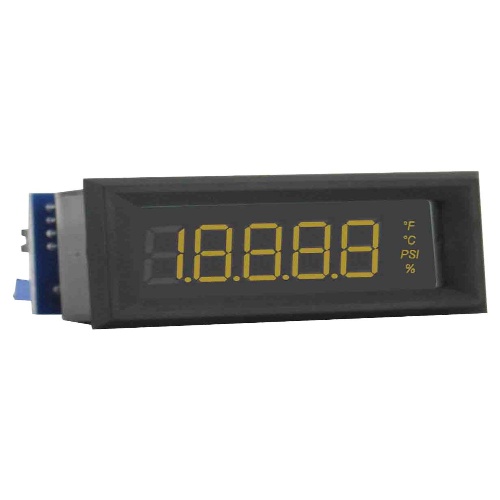

Dwyer DPML-504P LCD Digital Panel Meter
Normally In Stock
Code: 570891
Dwyer DPML-504P - DPML-504P 12/24 VDC BLK #/GRN
Condition: New
Usually ships Same Day or Next Day$200.50
Sale Price
$167.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPML-504P is an LCD Digital Panel Meter with a temperature range of 32 to 122°F (0 to 50°C). It has an accuracy of ±(0.1% FS + 2 count) and adjustable zero and span adjustments of ±19999 counts. This meter is powered by a control loop or 12VDC/24VDC and features a snap-in bezel mount and a 4-1/2 digit, 7 segment display. It has screw terminals for easy connection and can accept inputs of 4-20mA or 0-200mVDC, 0-5VDC, or 0-10VDC. The DPML-504P also has a conversion rate of 3 per second and a user-selectable decimal point.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
