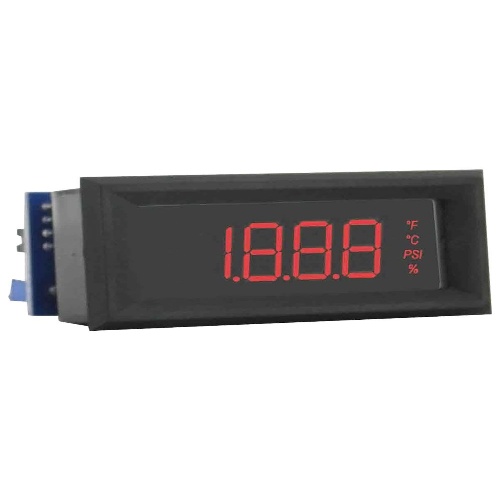

Dwyer DPMP-403P LCD Digital Panel Meter
Normally In Stock
Code: 570899
Dwyer DPMP-403P - LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, red segments.
Condition: New
Usually ships Same Day or Next Day$168.61
Sale Price
$140.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPMP-403P is an LCD Digital Panel Meter with a temperature range of 32 to 122°F (0 to 50°C). It offers an accuracy of ±(0.1% FS + 2 count) and adjustable zero and span adjustments of ±1999 counts. The meter has a compact snap-in bezel mount and a 3-1/2 digit, 7 segment display. It features screw terminals for easy connection and has input options of 4 to 20 mA or 0 to 200 mVDC, 0 to 5 VDC, or 0 to 10 VDC. The meter is powered by a control loop or 12 VDC/24 VDC depending on the model. It supports various engineering units and has user-selectable decimal points. The conversion rate is 3 per second and it requires a typical warm-up time of 10 minutes. The DPMP-403P also has automatic polarity and a 24 VDC backlight power supply.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
