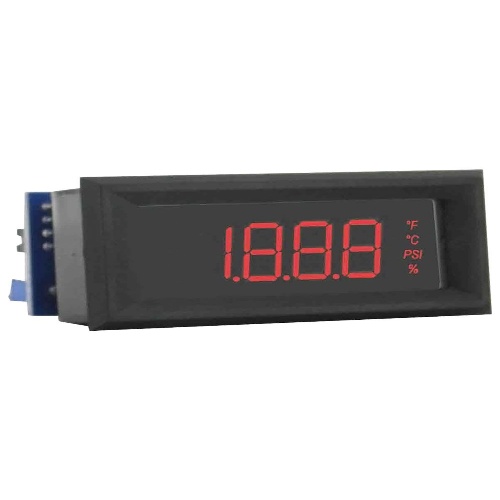

Dwyer DPMP-501 LCD Digital Panel Meter
Normally In Stock
Code: 570904
Dwyer DPMP-501 - LCD digital panel meter, voltage powered 12VDC/24VDC, amber segments.
Condition: New
Usually ships Same Day or Next Day$175.09
Sale Price
$145.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPMP-501 is a versatile LCD Digital Panel Meter with a temperature range of 32 to 122°F (0 to 50°C). With an accuracy of ±(0.1% FS + 2 count) and adjustable zero and span adjustments (±1999 Counts), it provides reliable measurements. It features a snap-in bezel mount, 3-1/2 digit display, and screw terminals for easy installation. The input options include 4 to 20 mA for DPMP-4XX(P) and 0 to 200 mVDC, 0 to 5 VDC, or 0 to 10 VDC for DPMP-5XX(P). With a conversion rate of 3 per second and automatic polarity, it ensures quick and accurate readings.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
