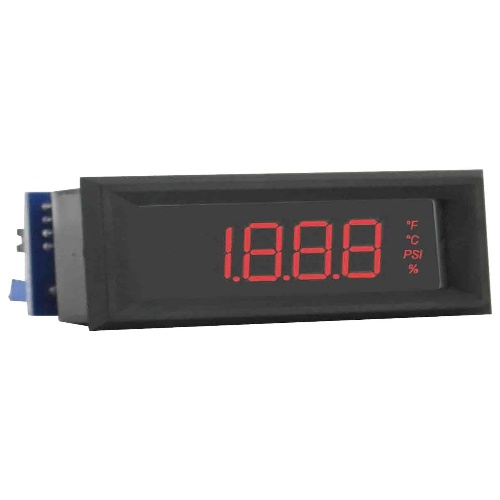

Dwyer DPMP-503 LCD Digital Panel Meter
Normally In Stock
Code: 570908
Dwyer DPMP-503 - LCD digital panel meter, voltage powered 12VDC/24VDC, red segments.
Condition: New
Usually ships Same Day or Next Day$175.09
Sale Price
$145.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPMP-503 is an LCD digital panel meter with a temperature range of 32 to 122°F (0 to 50°C) and an accuracy of ±(0.1% FS + 2 count). It has adjustable zero and span adjustments of ±1999 counts and can be powered by a control loop or 12-24 VDC. The meter features a snap-in bezel mount, 3-1/2 digit 7-segment display, screw terminals for connection, and various input options (4-20 mA or 0-200 mVDC/0-5 VDC/0-10 VDC). It supports different engineering units and has a 3-position user-selectable decimal point.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
