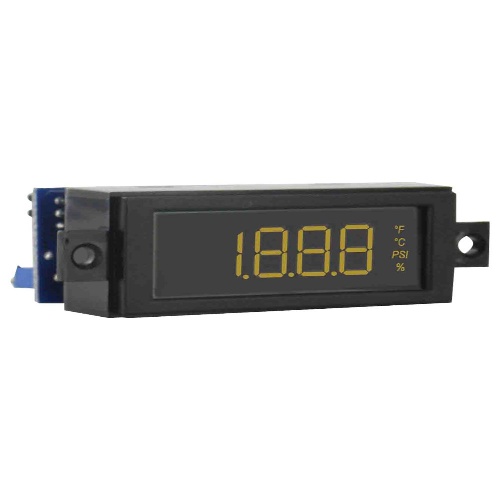

Dwyer DPMW-401 LCD Digital Panel Meter
Normally In Stock
Code: 570912
Dwyer DPMW-401 - LCD digital panel meter, loop powered 4 to 20 mA, amber segments.
Condition: New
Usually ships Same Day or Next Day$184.87
Sale Price
$154.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPMW-401 is an LCD Digital Panel Meter suitable for temperature measurement from 32 to 122°F (0 to 50°C). It offers an accuracy of ±(0.1% FS + 2 count) and adjustable zero and span adjustments of ±1999 counts. The snap-in bezel mount and screw terminals make it easy to install and connect. With a 3-1/2 digit, 7 segment display and 3-position selectable decimal points, it provides clear and accurate readings. Powered by control loop or 12/24 VDC, it offers input options of 4-20mA, 0-200mVDC, 0-5VDC, or 0-10VDC. The DPMW-401 supports different engineering units and delivers a conversion rate of 3 per second. The automatic polarity display and 24 VDC backlight power supply further enhance its usability.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
