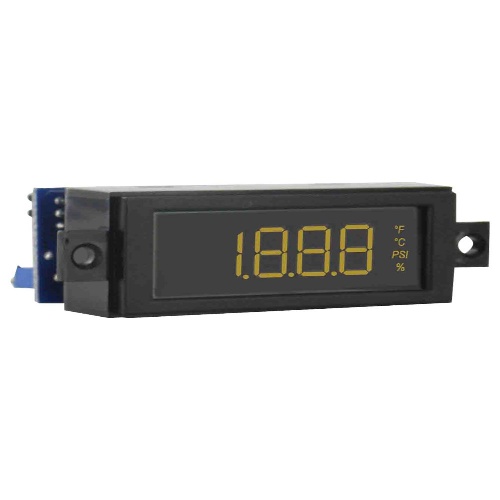

Dwyer DPMW-402 LCD Digital Panel Meter
Normally In Stock
Code: 570914
Dwyer DPMW-402 - LCD digital panel meter, loop powered 4 to 20 mA, green segments.
Condition: New
Usually ships Same Day or Next Day$184.87
Sale Price
$154.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPMW-402 is an LCD digital panel meter with a temperature range of 32 to 122°F (0 to 50°C) and an accuracy of ±(0.1% FS + 2 count). It has adjustable zero and span adjustments, snap-in bezel mounting, and a 3-1/2 digit, 0.45" display. The input options include 4-20 mA or 0-200 mVDC, 0-5 VDC, and 0-10 VDC, with different input impedance and engineering unit options. It has a conversion rate of 3 per second, a 10-minute warm-up time, and automatic polarity. The backlit power supply is 24 VDC @ 35 mA.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
