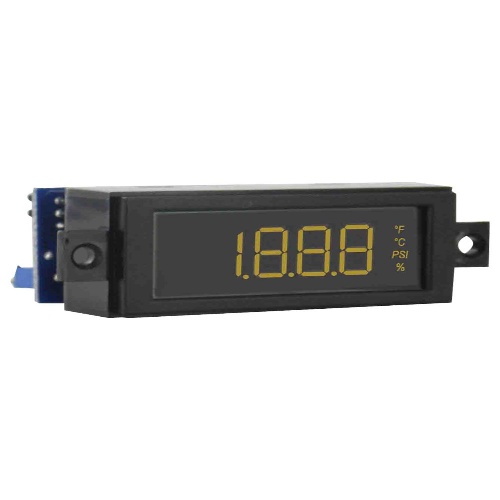

Dwyer DPMW-402P LCD Digital Panel Meter
Normally In Stock
Code: 570915
Dwyer DPMW-402P - LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, green segments, no backlight.
Condition: New
Usually ships Same Day or Next Day$184.87
Sale Price
$154.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPMW-402P is an LCD digital panel meter with a temperature range of 32 to 122°F (0 to 50°C). It has an accuracy of ±(0.1% FS + 2 count) and adjustable zero and span adjustments (±1999 counts). The panel meter is powered by a control loop or 12V/24V DC. It has a snap-in bezel mount, a 3-1/2 digit, 7-segment display, and screw terminals for connection. The input ranges from 4 to 20 mA or 0 to 200 mVDC, 0 to 5 VDC, or 0 to 10 VDC. With a conversion rate of 3 per second and automatic polarity, the meter offers versatility and reliability.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
