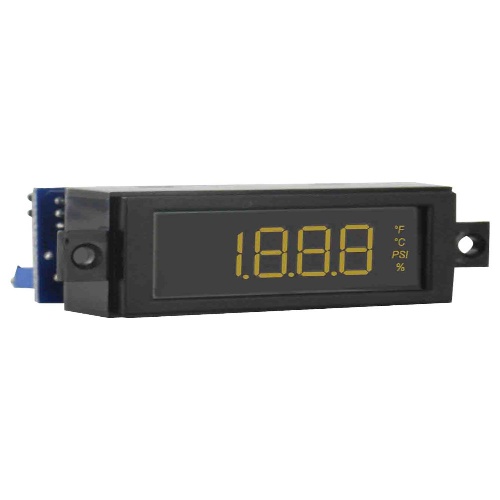

Dwyer DPMW-403P LCD Digital Panel Meter
Normally In Stock
Code: 570917
Dwyer DPMW-403P - LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, red segments, no backlight.
Condition: New
Usually ships Same Day or Next Day$184.16
Sale Price
$153.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPMW-403P is an LCD digital panel meter with a temperature range of 32 to 122°F (0 to 50°C). It has an accuracy of ±(0.1% FS + 2 count) with adjustable zero and span adjustments. The meter has a 3-1/2 digit, 7 segment display and a snap-in bezel mount. It has screw terminals for easy connection and supports different input options such as 4 to 20 mA, 0 to 200 mVDC, 0 to 5 VDC, or 0 to 10 VDC. The meter allows users to select different engineering units and decimal points. It has a conversion rate of 3 per second and a warm-up time of 10 minutes. The meter automatically displays the polarity with a backlight powered by 24 VDC.
Specifications
Component
Digital Panel Meter
Manufacturer
Dwyer
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
