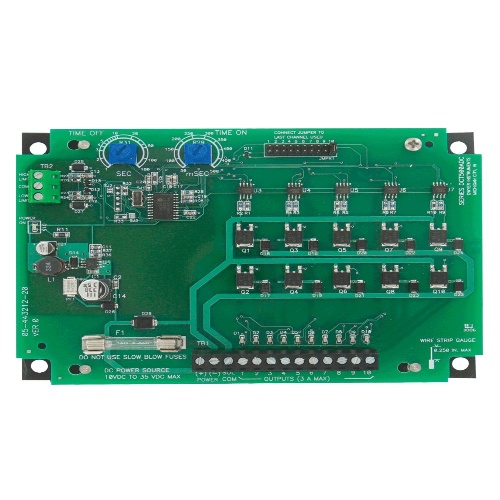

Dwyer DCT504ADC Low Cost Timer Controller
Normally In Stock
Code: 572344
Dwyer DCT504ADC - Low cost timer controller, 4 channels.
Condition: New
Usually ships Same Day or Next Day$224.45
Sale Price
$187.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DCT504ADC is a low-cost timer controller with a temperature range of -40 to 140°F (-40 to 60°C) and a power requirement of 10 to 35 VDC. It has a power consumption of 0.6 W and a stability of <±1 ms. The fuse type is 3 AG, 3 A @ 250 VAC. It offers 4, 6, & 10 output channels with an off time range of 1 second to 180 seconds and an on time range of 50 msec to 500 msec. It has an off time accuracy of ±5% of setting and an on-time accuracy of ±10 msec. The solenoid supply is 3A max. per channel.
Specifications
Manufacturer
Dwyer
(Instrument-Sensor) Temperature Range
-40 - 140°F/-40 - 60°C
(Instrument-Sensor) Supply Voltage
10-35 VDC
Component
Timer Controller
(Instrument-Sensor) Type
Low Cost
Features
Simple and easy to use design
Optional weatherproof enclosure available
Downloads
