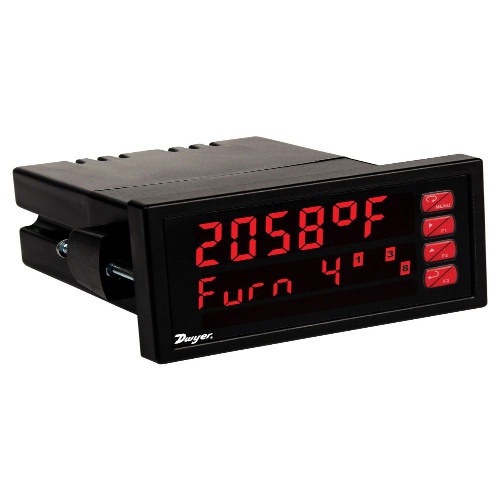

Dwyer LTI-120 Temperature Panel Meter
Normally In Stock
Code: 572413
Dwyer LTI-120 - Temperature panel meter, 85-265 VAC, 2 relays, no transmitter.
Condition: New
Usually ships Same Day or Next Day$873.05
Sale Price
$727.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer LTI-120 Temperature Panel Meter is a versatile device with a wide operating temperature range (-4 to 149°F) and power requirements of 85 to 265 VAC, 50/60 Hz or 90 to 265 VDC. It features a dual-line, 6-digit display, and offers temperature measurement using various thermocouple types and RTDs. The meter has an isolated 4-20 mA output and high input impedance. With a NEMA 4X and IP65 front panel rating, it can withstand harsh environments. It also includes programming software and has a compact design with no need for external downloads.
Specifications
Manufacturer
Dwyer
(Instrument-Sensor) Supply Voltage
12-24 VDC
(Instrument-Sensor) Temperature Range
Storage: -40 - 185°F/-40 - 85°C
(Instrument-Sensor) Supply Voltage
85-265 VAC
(Instrument-Sensor) Supply Voltage
90-265 VDC
Component
Temperature Panel Meter
(Instrument-Sensor) Temperature Range
Operating: -4 - 149°F/-20 - 65°C
Features
1/8 DIN Digital Panel Temperature Meter with NEMA 4X, IP65 Front
J, K, T, E, R, S, B, N, C Thermocouples
100 or 1000 Ω Platinum, 10 Ω Copper, 120 Ω Nickel RTDs
Optional Isolated 4-20 mA Output Turns the Meter into a Temperature Transmitter
1° or 0.1° Resolution
Averages up to 10 RTD Sensors
Automatic Cold Junction Compensation
Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)
2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options
Free PC-Based, Onboard, Panel Meter Pro USB Programming Software
No Assembly Required
Operating Temperature Range: -20 to 65°C (-4 to 149°F)
UL & C-UL Listed. E160849
508 Industrial Control Equipment
Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC
Programmable Display, Function Keys & Digital Input
External 4-Relay & Digital I/O Expansion Modules
RS-232 & RS-485 Serial Communication Options with Modbus RTU
Password Protection
Wide Assortment of NEMA 4X Enclosures for up to Ten Meters
3-Year Warranty
