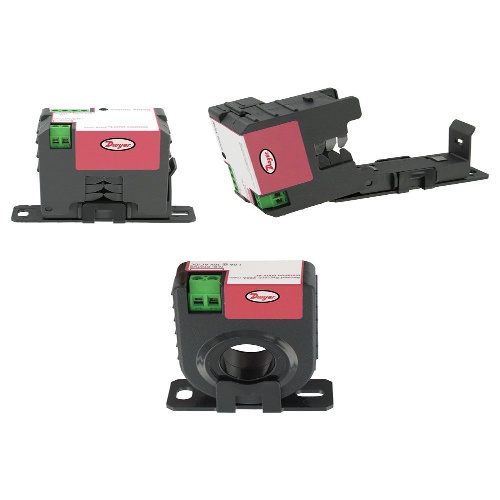

Dwyer SCS-120025 Current Switch
Normally In Stock
Code: 573821
Dwyer SCS-120025 - Solid core current switch with fixed set point at 0.25A, amperage range .25 to 200 A.
Condition: New
Usually ships Same Day or Next Day$87.19
Sale Price
$72.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SCS-120025 Current Switch is a self-powered device with a temperature range of 5 to 140°F (-15 to 60°C). It has a voltage capacity of 600 VAC RMS and features an isolated output of 1 A @ 30 VAC/DC max. The switch is enclosed in a UL-rated ABS plastic housing and uses an external relay with SPST N.O configuration. It operates at a frequency of 50/60 Hz and can handle a maximum power of 10A at 260 VAC (5A at 30 VDC).
Specifications
Manufacturer
Dwyer
Component
Current Switch
(Instrument-Sensor) Temperature Range
5 - 140°F/-15 - 60°C
Features
Integral mounting flange for quick installation
Solid core or split core configurations
