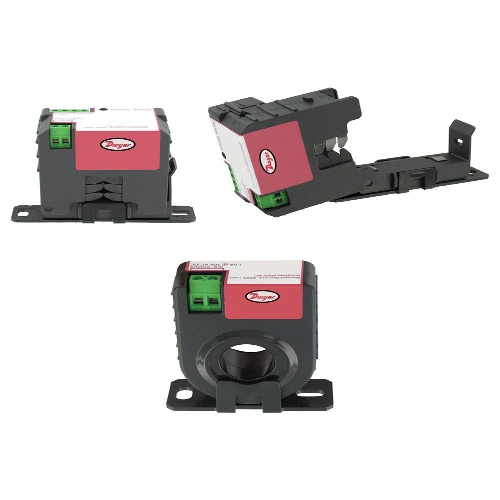

Dwyer SCS-220015 Current Switch
Normally In Stock
Code: 573824
Dwyer SCS-220015 - Split core current switch with fixed set point at 0.15A, amperage range .15 to 200 A.
Condition: New
Usually ships Same Day or Next Day$104.29
Sale Price
$86.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SCS-220015 Current Switch is a self-powered device with a temperature range of 5 to 140°F (-15 to 60°C). It features a 600 VAC RMS voltage and an isolated output of 1 A @ 30 VAC/DC max. The enclosure is UL rated and made of ABS plastic. The switch operates at a frequency of 50/60 Hz and has an external SPST N.O. relay with a 10A rating at 260 VAC (5A at 30 VDC).
Specifications
Manufacturer
Dwyer
Component
Current Switch
(Instrument-Sensor) Temperature Range
5 - 140°F/-15 - 60°C
Features
Integral mounting flange for quick installation
Solid core or split core configurations
