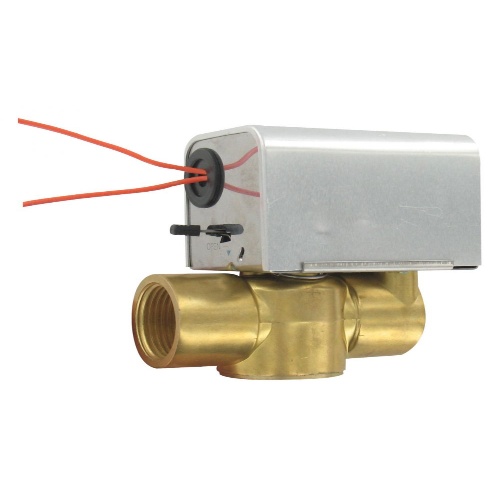

Dwyer ZV1142-NO Two-Way Zone Valve
Normally In Stock
Code: 575048
Dwyer ZV1142-NO - Two-way zone valve, 1" Sweat, 120 VAC. *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$120.20
Sale Price
$100.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer ZV1142-NO Two-Way Zone Valve is a versatile component suitable for a temperature range of ambient: 32 to 104°F (0 to 40°C) and process: 0 to 201°F (0 to 94°C). With power requirements of 120 VAC or 24 VAC, it features a general-purpose enclosure, 22 AWG electrical connections, and a power consumption of 6.5 W. Made with brass, stainless steel, and NBR, it can handle maximum pressures of 300 psi with close-off limits of 22 psi for 1/2" to 3/4" and 14.5 psi for 1" connections. The valve is equipped with a female NPT process connection with optional BSP or sweat connections available. Its aluminum body ensures durability. Designed for on/off inputs, it is designed for line sizes ranging from 1/2" to 1". Opening and closing times are quick with 11 seconds and 5 seconds, respectively. The valve has a normally closed, 2-way body and offers a quick opening flow characteristic.
Specifications
Manufacturer
Dwyer
(Instrument-Sensor) Supply Voltage
24 VAC
(Instrument-Sensor) Application
Liquid
Component
Valve
(Instrument-Sensor) Supply Voltage
120 VAC
(Instrument-Sensor) Temperature Range
Ambient: 32 - 104°F/0 - 40°C
Sub Component
Two-Way Zone Valve
(Instrument-Sensor) Temperature Range
Process: 0 - 201°F/0 - 94°C
Features
ZV1 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems
Zone valves are typically used in conjunction with a thermostat to control room temperature
The ZV1 is electrically driven to open and spring to close
Units are available in 1/2˝, 3/4˝, and 1˝ sizes with 24 or 120 VAC power supply
Easy to install these units are direct replacements for competitor units
Manual override lever is easily accessible externally
Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.
