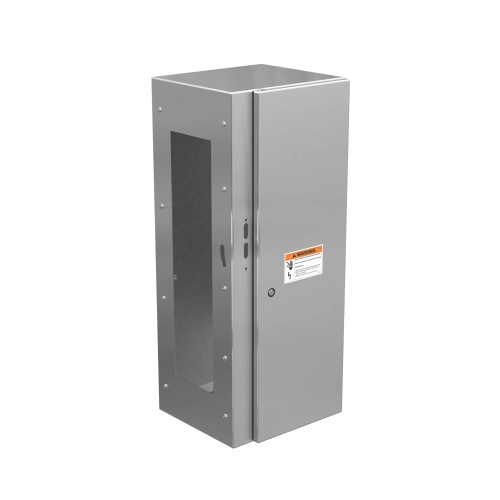

Hoffman AXD341424SS Stainless Steel Low-Amp SEQUESTR External Disconnect Enclosure, Type 4X
Normally In Stock
Code: 58368
Hoffman AXD341424SS 34.45"x14"x24" Type 3R. 4. 4X,Type 12 Outdoor-Indoor 1 Door Wall Mount Preferred Cutout Disconnect (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$4815.72
Sale Price
$4013.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hoffman AXD341424SS Stainless Steel Low-Amp SEQUESTR External Disconnect Enclosure, Type 4X Isolate low-amp disconnect switches and breakers in the SEQUESTR external disconnect enclosure to mitigate arc flash incidents. Install on free-stand or floor-mount disconnect enclosures to reduce exposure to incoming power. When the disconnect handle is turned OFF, there is no live power on the load side cables passing through to the main enclosure. The SEQUESTR enclosure is sized for use with up to 200A disconnect switches or up to 400A breakers dependent on NEC 430.10(B), and is designed to fit with bulletins A28S4 and A21S4 main enclosures. Refer to installation manual for configuration mounting and hole pattern.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Depth
24"
Enclosure Composition
Stainless Steel
Enclosure Latch Type
3 Point
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
34.45"
Line
Sequestr
Manufacturer
Hoffman
Component
Disconnect Enclosure
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
14"
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Cutout Type
Preferred Cutout
Features
Maintains UL Type rating of main enclosure
Disconnect handle mounts on main enclosure or Sequestr
Designed to house cable-operated or variable-depth rod disconnect switches or breakers for mounting flexibility
Quarter-turn, slotted 3-point latch installed, padlocking handle shipped loose to provide additional level of security
Interlocks with doors of main enclosure when the disconnect handle is powered ON to prevent opening when energized
Seams continuously welded and ground smooth
Conductive back panel included
Mounting and interlocking hardware included
Bonding provision on door
Removable door with stainless steel hidden hinges for clean, aesthetic appearance
Hinged on right side
