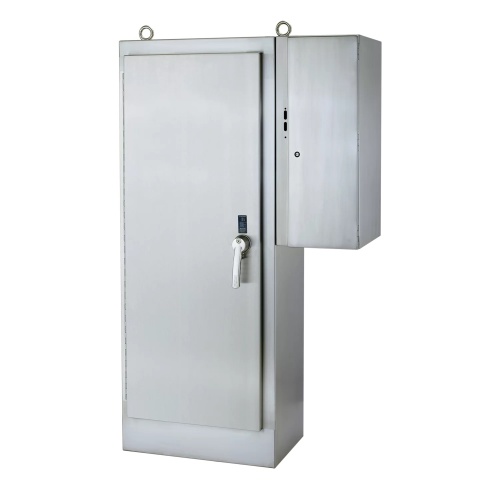

Hoffman A84XD3EW18SSFTCLP Stainless Steel SEQUESTR External Disconnect Package, Type 4X
Normally In Stock
Code: 58391
Hoffman A84XD3EW18SSFTCLP 84"x119"x18" Type 3R,Type 4,Type 4X,Type 12 Outdoor-Indoor 3 Door Enclosure Wall Mount Preferred Cutout Disconnect (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$69932.77
Sale Price
$58277.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Hoffman A84XD3EW18SSFTCLP Stainless Steel SEQUESTR External Disconnect Package, Type 4X The Stainless Steel SEQUESTR External Disconnect Enclosure package helps mitigate arc flash occurrences when working on interior components by isolating incoming power from the main enclosure. Manufactured from 304 stainless steel, it provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. A package includes a main enclosure and a SEQUESTR box. SEQUESTR ,boxes can be ordered separately to retrofit existing enclosures. The disconnect switch and fuse block/circuit breaker are mounted in the external enclosures, with terminal connections to bring power to the main enclosure.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Lock Type
Padlocking
Enclosure Depth
18"
Enclosure Composition
Stainless Steel
Enclosure Latch Type
3 Point
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
84"
Enclosure Width
119"
Line
Sequestr
Manufacturer
Hoffman
Component
Disconnect Enclosure
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Enclosure Number of Doors
3 Door
Cutout Type
Preferred Cutout
Features
Interlocks doors of main control cabinet when disconnect switch is powered ON
Sequestr enclosure is 14 gauge Type 304 stainless steel
Seams continuously welded and ground smooth
Mechanical interlock on main control enclosure activated by master door, preventing slave door from being opened first
Main enclosure 12 gauge Type 304 stainless steel
Package includes a main enclosure and a Sequestr box.
Provision for pass-through power into the main enclosure
Concealed, easy-to-remove hinges
Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle on all doors
Quarter-turn, screwdriver slot latch on Sequestr Enclosure
Preferred Disconnect cutout
Grounding studs on body
Bonding provision on door
Optional back panel for main control cabinet for maximum ordering flexibility
Sequestr External Disconnect Enclosure is shipped unattached for easy disconnect installation
Conductive back panel included in Sequestr External Disconnect Enclosure
Downloads

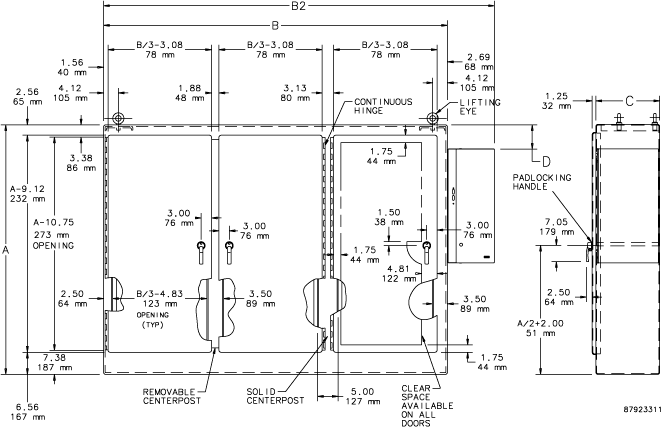

Hoffman A84XD3EW18SSFTCLP 2D DXF CAD.zipHoffman A84XD3EW18SSFTCLP 3D STEP CAD.zipHoffman A84XD3EW18SSFTCLP CSA Certification.pdfHoffman A84XD3EW18SSFTCLP Declaration of Compliance.pdfHoffman A84XD3EW18SSFTCLP Dimension Drawing.gifHoffman A84XD3EW18SSFTCLP Instruction Manual.pdfHoffman A84XD3EW18SSFTCLP Large Enclosure Handling Manual.pdfHoffman A84XD3EW18SSFTCLP Spec Sheet.pdfHoffman A84XD3EW18SSFTCLP UL Certification.pdf
