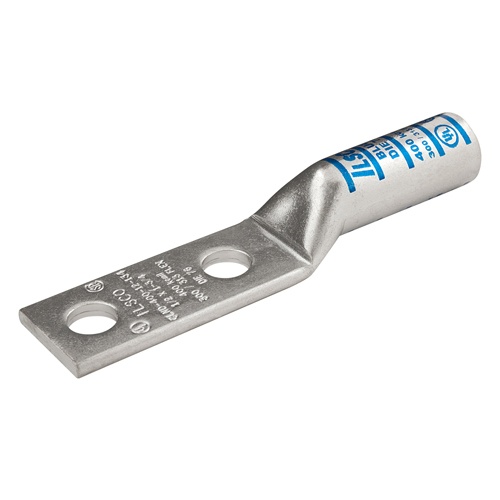

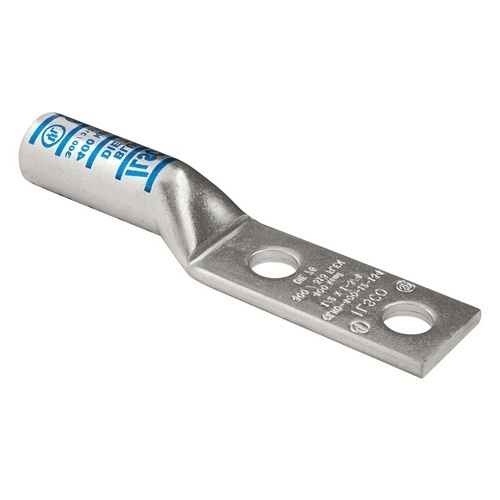

Ilsco CLND-250-38-1 Compression Lug - Copper, 250 MCM, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 585606
Ilsco CLND-250-38-1 - Surecrimp Copper Compression Lug, Conductor Size 250, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$25.26
Sale Price
$19.43
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CLND-250-38-1 - Surecrimp Copper Compression Lug for 250 kcmil stranded conductors, 2 holes, 3/8in bolt size, 1in hole spacing. Ideal for 35 kV applications, UL/CSA/NEMA listed, tin-plated copper with 90°C temp rating. Direct burial compatible, suitable for 4/0 flex conductors. Long barrel design, no sight window. Durable and reliable electrical connection.
Specifications
Bolt Size
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Copper
Connector Finish
Tin
Number of Mounting Holes
3
Wire Gauge
250 MCM
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
